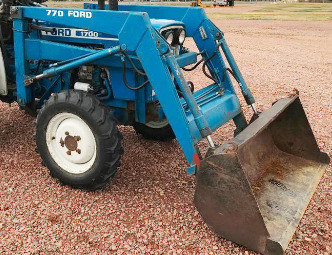

Ford 770 Front End Loader

The Ford 770 loader is available for Ford 1600 tractor. The Ford 770 loader has double acting hydraulic lifting and bucket cylinders. The loader’s maximum lift height is 87" (2200 mm) at pin and clearance with bucket dumped is 70" (1770 mm). The lifting capacity is 700 lbs (317 kg) at maximum height (bucket pin), and breakout force is 1600 lbs (725 kg) with bucket on ground.

The raising time is 5 sec from ground line to max height, and bucket rollback time is 3 sec. Compatible buckets for the Ford 770 front-end loader: 48" (1220 mm) standard material bucket with a rated capacity of 0.21 m3 (7.5 cu.ft), and 60" (1520 mm) standard material bucket with a rated capacity of 0.27 m3 (9.5 cu.ft).

Compatible Tractors
Tractor models Ford 1600
Front tires 6.0x16
Rear tires 11.2x24
Hydraulic system flow, gpm (lpm) 4.2 (16.0)
Hydraulic pressure, bar (psi) 100 (1420)

Loader
Loader model Ford 770
Attachment control type Mechanical
Lift cylinder (Number and type) 2, Single action
Bucket cylinder (Number and type) 2, Double action
Weight, lbs (kg) 580 (265)

48" Standard Material Bucket
Width, in (mm) 48 (1220)
Depth, in (mm) 18 (455)
Height, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 6,0 (0,17)
Capacity (Heaped), cu.ft (m3) 7,5 (0,21)
Weight, lbs (kg) 230 (105)

60" Standard Material Bucket
Width, in (mm) 60 (1520)
Depth, in (mm) 18 (455)
Height, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 7,5 (0,21)
Capacity (Heaped), cu.ft (m3) 9,5 (0,27)
Weight, lbs (kg) 260 (118)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 87 (2200)
Reach at maximum height, in (mm) 30 (760)
Clearance, bucket dumped, in (mm) 70 (1770)
Maximum dumping angle, degrees 40
Reach, bucket on ground, in (mm) 61 (1540)
Rollback angle, degrees 10
Maximum digging depth, in (mm) 12 (305)

Operating Data
Lift capacity to maximum height at pivot pin, lbs (kg) 700 (317)
Breakout force at pivot pin, lbs (kg) 1600 (725)

Cycle Times
Raising time to full height, sec 5,0
Lowering time, sec 5,0
Bucket rollback time, sec 3,0
