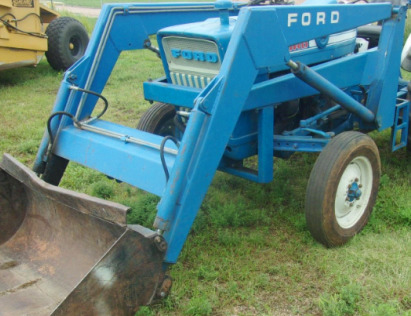

Ford 772A Front End Loader
The
Ford 772A loader is fitted to Ford 3600, 4100, 4600 tractors. The loader has
double acting hydraulic lifting and bucket cylinders.
The loader has a lift capacity (at pin) of 2460 lbs (1115 kg) to a 124"
(3140 mm) maximum height and a bucket's breakout force of 3800 lbs (1723
kg). A full dump clearance with a 33-degree maximum dump angle is 98.5"
(2500 mm). The rated cycle times are 12 seconds raising to maximum
height, and 3 seconds full bucket rollback.
Compatible buckets for the Ford 772A front-end loader: a 48" (1220 mm)
standard material bucket with a heaped capacity of 13.9 cu.ft (0.40 m3),
and 60" (1520 mm) standard material bucket with a heaped capacity of
17.6 cu.ft (0.50 m3).
| Tractor models |
Ford 3600, 4100, 4600 |
| Front tires |
7,5-16 |
| Rear tires |
14,9-28 |
| Hydraulic system flow, gpm (lpm) |
8.5 (32.5) |
| Hydraulic pressure, bar (psi) |
174 (2500) |
| Loader model |
Ford 772A |
| Attachment control type |
Mechanical / Hydraulic |
| Lift cylinder (Number and type) |
Two, Double action |
| Bucket cylinder (Number and type) |
Two, Double action |
| Weight, lbs (kg) |
930 (422) |
| 48" Standard Material Bucket |
| Width, in (mm) |
48 (1220) |
| Depth, in (mm) |
29 (734) |
| Height, in (mm) |
25 (633) |
| Capacity (Struck), cu.ft (m3) |
11,2 (0,32) |
| Capacity (Heaped), cu.ft (m3) |
13,9 (0,40) |
| Weight, lbs (kg) |
385 (175) |
| 60" Standard Material Bucket |
| Width, in (mm) |
60 (1520) |
| Depth, in (mm) |
29 (734) |
| Height, in (mm) |
25 (633) |
| Capacity (Struck), cu.ft (m3) |
14,0 (0,40) |
| Capacity (Heaped), cu.ft (m3) |
17,6 (0,50) |
| Weight, lbs (kg) |
440 (200) |
| Maximum lift height at pivot pin, in (mm) |
124 (3140) |
| Reach at maximum height, in (mm) |
32.3 (820) |
| Clearance, bucket dumped, in (mm) |
98.5 (2500) |
| Maximum dumping angle, degrees |
33 |
| Reach, bucket on ground, in (mm) |
75 (1900) |
| Maximum digging depth, in (mm) |
12 (303) |
| Rollback angle, degrees |
9 |
| Height in carrying position, in (mm) |
62 (1565) |
| Lift capacity to maximum height at pivot pin, lbs (kg) |
2460 (1115) |
| Breakout force at pivot pin, lbs (kg) |
3800 (1723) |
| Raising time to full height, sec |
12,0 |
| Lowering time, sec |
7,0 |
| Bucket rollback time, sec |
3,0 |
