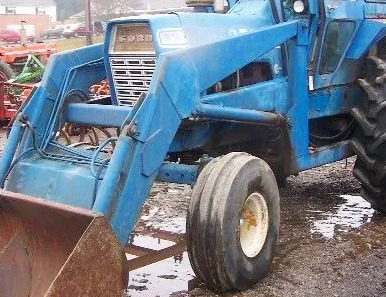

Ford 773 Front End Loader
The
Ford 773 front end loader is used for Ford 8000, 8100, 8600, 9000, 9100, 9600
tractors. The front end loader hydraulic system includes double-acting hydraulic
bucket and lifting cylinders.
The loader has a maximum lift height of 134 inches (3390 mm) at pin and
bucket dump clearance of 104 inches (2630 mm). The lift capacity is 5000
lbs (2270 kg) at maximum height (bucket pin), and breakout force is 6600
lbs (3000 kg). The estimated cycle times are 7 seconds raising to full
height, and 3 seconds to full bucket rollback.
The Ford 773 loader is equipped with the following buckets: a 78" (1970
mm) standard material bucket with a heaped capacity of 23.1 cu.ft (0.66
m3), or 102" (2600 mm) high volume bucket with a heaped capacity of 65.3
cu.ft (1.85 m3).
| Tractor models |
Ford 8000, 8100, 8600, 9000, 9100, 9600 |
| Front tires |
7.5x18 |
| Rear tires |
18.4x34 |
| Hydraulic system flow, gpm (lpm) |
16.0 (60.5) |
| Hydraulic pressure, bar (psi) |
173 (2500) |
| Loader model |
Ford 773 |
| Attachment control type |
Hydraulic |
| Lift cylinder (Number and type) |
2, Double action |
| Bucket cylinder (Number and type) |
2, Double action |
| Weight, lbs (kg) |
2570 (1170) |
| Width, in (mm) |
78 (1970) |
| Depth, in (mm) |
29 (734) |
| Height, in (mm) |
25 (633) |
| Capacity (Struck), cu.ft (m3) |
18,3 (0,52) |
| Capacity (Heaped), cu.ft (m3) |
23,1 (0,66) |
| Weight, lbs (kg) |
525 (239) |
| Width, in (mm) |
102 (2600) |
| Depth, in (mm) |
42.9 (1090) |
| Height, in (mm) |
36.6 (980) |
| Capacity (Struck), cu.ft (m3) |
54.4 (1.55) |
| Capacity (Heaped), cu.ft (m3) |
65.3 (1.85) |
| Weight, lbs (kg) |
1038 (471) |
| Maximum lift height at pivot pin, in (mm) |
134 (3390) |
| Reach at maximum height, in (mm) |
44,5 (1126) |
| Clearance, bucket dumped, in (mm) |
104 (2630) |
| Maximum dumping angle, degrees |
48 |
| Reach, bucket on ground, in (mm) |
81 (2050) |
| Rollback angle, degrees |
14 |
| Maximum digging depth, in (mm) |
4,5 (114) |
| Height in carrying position, in (mm) |
72,3 (1830) |
| Lift capacity to maximum height at pivot pin, lbs (kg) |
5000 (2270) |
| Breakout force at pivot pin, lbs (kg) |
6600 (3000) |
| Raising time to full height, sec |
7,0 |
| Lowering time, sec |
4,0 |
| Bucket rollback time, sec |
3,0 |
