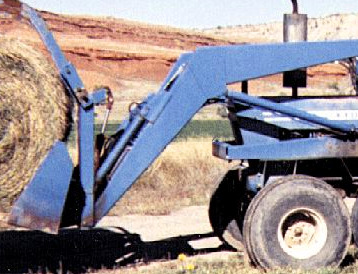

Ford 774 Front End Loader
The
Ford 774 loader is used for Ford 6600, 7600, 7700, 8000, 8600 tractors. The
loader has a double acting lifting and bucket hydraulic cylinders. The loader
has a lift capacity (at bucket pin) of 2000 lbs (910 kg) to full height of 176"
(4452 mm), and boom breakout force of 4500 lbs (2040 kg).
The bucket dump clearance is 154" (3896 mm) at maximum dump angle of 35
degrees. The rated cycle times are 5 seconds raising to full height, and
8 seconds to full bucket dump.
The Ford 774 front-end loader is compatible with a 78" (1970 mm)
standard material bucket with a heaped capacity of 23.1 cu.ft (0.66 m3),
or 102" (2600 mm) heavy-duty material bucket with a heaped capacity of
43.7 cu.ft (1.24 m3).
| Tractor models |
Ford 6600, 7600, 7700, 8000, 8600 |
| Front tires |
7.5x16 |
| Rear tires |
13.6x38 |
| Hydraulic system flow, gpm (lpm) |
6.0 (22.8) |
| Hydraulic pressure, bar (psi) |
173 (2500) |
| Loader model |
Ford 774 |
| Attachment control type |
Hydraulic |
| Lift cylinder (Number and type) |
2, Double action |
| Bucket cylinder (Number and type) |
2, Double action |
| Weight, lbs (kg) |
1689 (765) |
| Width, in (mm) |
78 (1970) |
| Depth, in (mm) |
29 (734) |
| Height, in (mm) |
25 (633) |
| Capacity (Struck), cu.ft (m3) |
18,3 (0,52) |
| Capacity (Heaped), cu.ft (m3) |
23,1 (0,66) |
| Weight, lbs (kg) |
525 (239) |
| Heavy-Duty Material Bucket |
| Width, in (mm) |
102 (2600) |
| Depth, in (mm) |
33.9 (860) |
| Height, in (mm) |
29.5 (750) |
| Capacity (Struck), cu.ft (m3) |
36.4 (1.03) |
| Capacity (Heaped), cu.ft (m3) |
43.7 (1.24) |
| Weight, lbs (kg) |
805 (365) |
| Maximum lift height at pivot pin (Ford 6600, 7600, 7700), in (mm) |
176 (4452) |
| Maximum lift height at pivot pin (Ford 8000, 8600), in (mm) |
183 (4640) |
| Reach at maximum height (Ford 6600, 7600, 7700), in (mm) |
48 (1215) |
| Reach at maximum height (Ford 8000, 8600), in (mm) |
59.5 (1510) |
| Clearance, bucket dumped (Ford 6600, 7600, 7700), in (mm) |
154 (3896) |
| Clearance, bucket dumped (Ford 7700), in (mm) |
108 (2732) |
| Clearance, bucket dumped (Ford 8000, 8600), in (mm) |
168 (4260) |
| Maximum dumping angle, degrees |
35 |
| Reach, bucket on ground (Ford 6600, 7000), in (mm) |
94 (2378) |
| Reach, bucket on ground (Ford 7700), in (mm) |
83 (2100) |
| Rollback angle, degrees |
13 |
| Maximum digging depth (Ford 6600, 7000), in (mm) |
5,5 (139) |
| Maximum digging depth (Ford 7700), in (mm) |
6 (152) |
| Height in carrying position, in (mm) |
84 (2125) |
| Lift capacity to max height at pivot pin (Ford 6600, 7600, 7700), lbs (kg) |
2000 (910) |
| Lift capacity to max height at pivot pin (Ford 8000, 8600), lbs (kg) |
3740 (1695) |
| Breakout force at pivot pin (Ford 6600, 7600, 7700), lbs (kg) |
4500 (2040) |
| Breakout force at pivot pin (Ford 8000, 8600), lbs (kg) |
6000 (2720) |
| Raising time to full height, sec |
5,0 |
| Lowering time, sec |
5,0 |
| Bucket rollback time, sec |
8,0 |
