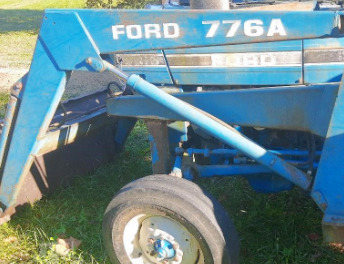

Ford 776A Front End Loader
The
Ford 776A front end loader is designed for Ford 2610, 4110 tractors. The front
end loader has double acting hydraulic bucket and lift cylinders. The Ford 776A
front end loader has a lift capacity (at bucket pin) of 2500 lbs (1134 kg) to a
max height of 124" (3140 mm) and breakout force (bucket on ground) of 3750 lbs
(1701 kg). The clearance with a bucket dumped is 102" (2590 mm) at a maximum
dump angle of 40 degrees.
The estimated cycle times are 6.7 seconds lifting to maximum height, and
3 seconds maximum bucket rollback. The Ford 776A loader is compatible
with the following standard material buckets: a 48" (1220 mm) bucket
with a rated capacity of 0.21 m3 (7.5 cu.ft), 60" (1520 mm) bucket with
a rated capacity of 0.27 m3 (9.5 cu.ft), or 72" (1820 mm) bucket with a
rated capacity of 0.33 m3 (11.5 cu.ft).
Tractor models |
Ford 2610, 4110 |
Front tires |
7,5-15 |
Rear tires |
16,9-24 |
Hydraulic system flow, gpm (lpm) |
8.5 (32.5) |
Hydraulic pressure, bar (psi) |
174 (2500) |
Loader model |
Ford 776A |
Attachment control type |
Mechanical / Hydraulic |
Lift cylinder (Number and type) |
Two, Double action |
Bucket cylinder (Number and type) |
Two, Double action |
Weight, lbs (kg) |
1036 (470) |
48" Standard Material Bucket |
Width, in (mm) |
48 (1220) |
Depth, in (mm) |
18 (455) |
Height, in (mm) |
19 (480) |
Capacity (Struck), cu.ft (m3) |
6,0 (0,17) |
Capacity (Heaped), cu.ft (m3) |
7,5 (0,21) |
Weight, lbs (kg) |
230 (105) |
60" Standard Material Bucket |
Width, in (mm) |
60 (1520) |
Depth, in (mm) |
18 (455) |
Height, in (mm) |
19 (480) |
Capacity (Struck), cu.ft (m3) |
7,5 (0,21) |
Capacity (Heaped), cu.ft (m3) |
9,5 (0,27) |
Weight, lbs (kg) |
260 (118) |
72" Standard Material Bucket |
Width, in (mm) |
72 (1820) |
Depth, in (mm) |
18 (455) |
Height, in (mm) |
19 (480) |
Capacity (Struck), cu.ft (m3) |
9,0 (0,26) |
Capacity (Heaped), cu.ft (m3) |
11,5 (0,33) |
Weight, lbs (kg) |
290 (132) |
Maximum lift height at pivot pin, in (mm) |
124 (3140) |
Reach at maximum height, in (mm) |
26 (660) |
Clearance, bucket dumped, in (mm) |
102 (2590) |
Maximum dumping angle, degrees |
40 |
Reach, bucket on ground, in (mm) |
75 (1900) |
Maximum digging depth, in (mm) |
7.5 (190) |
Rollback angle, degrees |
6 |
Lift capacity to maximum height at pivot pin, lbs (kg) |
2500 (1134) |
Lift capacity to maximum height at 19.7" (0.5m) forward of pivot pin, lbs (kg) |
1750 (793) |
Breakout force at pivot pin, lbs (kg) |
3750 (1701) |
Breakout force at 19.7" (0.5m) forward of pivot pin, lbs (kg) |
2625 (1190) |
Raising time to full height, sec |
6,7 |
Lowering time, sec |
4,0 |
Bucket rollback time, sec |
3,0 |
