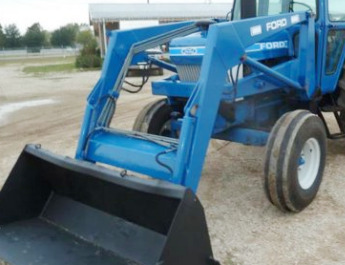

Ford 777B Front End Loader

The Ford 777B loader fits Ford 5610, 6610, 6710 tractors. The loader has double acting bucket and lift hydraulic cylinders. The Ford 777B front-end loader has a max lift height of 124" (3137 mm) at pin and bucket dump clearance of 100" (2540 mm). The lift capacity is 2500 lbs (1134 kg) to max height at pin, and boom breakout force is 4550 lbs (2063 kg).

The rated cycle times are 8.5 seconds raising to maximum height, and 3 seconds maximum bucket rollback. The Ford 777B loader is equipped with the following standard material buckets: a 48" (1220 mm) bucket with a heaped capacity of 0.21 m3 (7.5 cu.ft), 60" (1520 mm) bucket with a heaped capacity of 0.27 m3 (9.5 cu.ft), or 72" (1820 mm) bucket with a heaped capacity of 0.33 m3 (11.5 cu.ft).

Compatible Tractors
Tractor models Ford 5610, 6610, 6710
Front tires 11.2x24
Rear tires 18.4x30
Hydraulic system flow, gpm (lpm) 9.7 (37.0)
Hydraulic pressure, bar (psi) 173 (2500)

Loader
Loader model Ford 777B
Attachment control type Hydraulic
Lift cylinder (Number and type) 2, Double action
Bucket cylinder (Number and type) 2, Double action
Weight, lbs (kg) 1390 (630)

48" Standard Material Bucket
Width, in (mm) 48 (1220)
Depth, in (mm) 18 (455)
Inside Height, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 6,0 (0,17)
Capacity (Heaped), cu.ft (m3) 7,5 (0,21)
Weight, lbs (kg) 230 (105)

60" Standard Material Bucket
Width, in (mm) 60 (1520)
Depth, in (mm) 18 (455)
Inside Height, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 7,5 (0,21)
Capacity (Heaped), cu.ft (m3) 9,5 (0,27)
Weight, lbs (kg) 260 (118)

72" Standard Material Bucket
Width, in (mm) 72 (1820)
Depth, in (mm) 18 (455)
Inside Height, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 9,0 (0,26)
Capacity (Heaped), cu.ft (m3) 11,5 (0,33)
Weight, lbs (kg) 290 (132)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 124 (3137)
Reach at maximum height, in (mm) 45 (1140)
Clearance, bucket dumped, in (mm) 100 (2540)
Maximum dumping angle, degrees 47
Reach, bucket on ground, in (mm) 76 (1930)
Maximum digging depth, in (mm) 8 (202)
Rollback angle, degrees 14

Operating Data
Lift capacity to maximum height at pivot pin, lbs (kg) 2500 (1134)
Breakout force at pivot pin, lbs (kg) 4550 (2063)

Cycle Times
Raising time to full height, sec 8,5
Lowering time, sec 5,0
Bucket rollback time, sec 3,0
