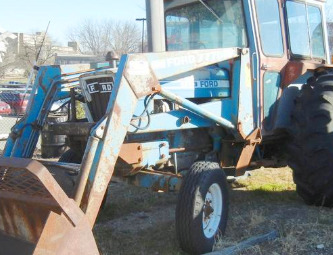

Ford 777D Front End Loader

The Ford 777D loader is used for Ford 5610, 6610, 6710 tractors. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders. The Ford 777D front end loader has a lifting capacity (at pivot pin) of 2900 lbs (1315 kg) to maximum height of 125" (3170 mm), and bucket's breakout force of 5500 lbs (2494 kg). The bucket dump clearance is 100" (2540 mm) at maximum dump angle of 47 degrees.

The rated cycle times are 9.7 seconds lifting to maximum height, and 3 seconds to full bucket rollback. The Ford 777D loader is compatible with a 48" (1220 mm) bucket with a heaped capacity of 0.21 m3 (7.5 cu.ft), 60" (1520 mm) bucket with a heaped capacity of 0.27 m3 (9.5 cu.ft), or 72" (1820 mm) bucket with a heaped capacity of 0.33 m3 (11.5 cu.ft).

Compatible Tractors
Tractor models Ford 5610, 6610, 6710
Front tires 11.2x24
Rear tires 18.4x30
Hydraulic system flow, gpm (lpm) 9.7 (37.0)
Hydraulic pressure, bar (psi) 173 (2500)

Loader
Loader model Ford 777D
Loader type Quick Tach
Attachment control type Hydraulic
Lift cylinder (Number and type) 2, Double action
Bucket cylinder (Number and type) 2, Double action
Weight, lbs (kg) 1415 (640)

48" Standard Material Bucket
Width, in (mm) 48 (1220)
Depth, in (mm) 18 (455)
Inside Height, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 6,0 (0,17)
Capacity (Heaped), cu.ft (m3) 7,5 (0,21)
Weight, lbs (kg) 230 (105)

60" Standard Material Bucket
Width, in (mm) 60 (1520)
Depth, in (mm) 18 (455)
Inside Height, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 7,5 (0,21)
Capacity (Heaped), cu.ft (m3) 9,5 (0,27)
Weight, lbs (kg) 260 (118)

72" Standard Material Bucket
Width, in (mm) 72 (1820)
Depth, in (mm) 18 (455)
Inside Height, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 9,0 (0,26)
Capacity (Heaped), cu.ft (m3) 11,5 (0,33)
Weight, lbs (kg) 290 (132)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 125 (3170)
Reach at maximum height, in (mm) 34 (860)
Clearance, bucket dumped, in (mm) 100 (2540)
Maximum dumping angle, degrees 47
Reach, bucket on ground, in (mm) 68 (1720)
Maximum digging depth, in (mm) 8 (202)
Rollback angle, degrees 14

Operating Data
Lift capacity to maximum height at pivot pin, lbs (kg) 2900 (1315)
Breakout force at pivot pin, lbs (kg) 5500 (2494)

Cycle Times
Raising time to full height, sec 9,7
Lowering time, sec 7,1
Bucket rollback time, sec 3,0
