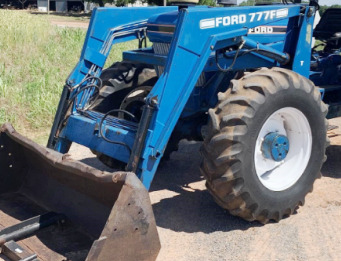

Ford 777F Front End Loader
The
Ford 777F loader is compatible with Ford 5610, 6610, 6710 tractors. The front
end loader has double acting boom and bucket hydraulic cylinders. The Ford 777F
loader has a lift capacity (at pivot pin) of 2900 lbs (1320 kg) to a maximum
height of 121" (3070 mm) and breakout force of 4800 lbs (2177 kg) with bucket on
ground. A full dump clearance with a 40-degree maximum dump angle is 98" (2480
mm).
The rated cycle times are 7.5 seconds raising to maximum height, and 3
seconds full bucket rollback. The Ford 777F loader is equipped with the
following standard material buckets: 48" (1220 mm) bucket with a heaped
capacity of 0.21 m3 (7.5 cu.ft), 60" (1520 mm) bucket with a heaped
capacity of 0.27 m3 (9.5 cu.ft), or 72" (1820 mm) bucket with a heaped
capacity of 0.33 m3 (11.5 cu.ft).
| Tractor models |
Ford 5610, 6610, 6710 |
| Front tires |
11.2x24 |
| Rear tires |
18.4x30 |
| Hydraulic system flow, gpm (lpm) |
9.7 (37.0) |
| Hydraulic pressure, bar (psi) |
173 (2500) |
| Loader model |
Ford 777F |
| Attachment control type |
Hydraulic |
| Lift cylinder (Number and type) |
2, Double action |
| Bucket cylinder (Number and type) |
2, Double action |
| Weight, lbs (kg) |
1636 (742) |
| 48" Standard Material Bucket |
| Width, in (mm) |
48 (1220) |
| Depth, in (mm) |
18 (455) |
| Inside Height, in (mm) |
19 (480) |
| Capacity (Struck), cu.ft (m3) |
6,0 (0,17) |
| Capacity (Heaped), cu.ft (m3) |
7,5 (0,21) |
| Weight, lbs (kg) |
230 (105) |
| 60" Standard Material Bucket |
| Width, in (mm) |
60 (1520) |
| Depth, in (mm) |
18 (455) |
| Inside Height, in (mm) |
19 (480) |
| Capacity (Struck), cu.ft (m3) |
7,5 (0,21) |
| Capacity (Heaped), cu.ft (m3) |
9,5 (0,27) |
| Weight, lbs (kg) |
260 (118) |
| 72" Standard Material Bucket |
| Width, in (mm) |
72 (1820) |
| Depth, in (mm) |
18 (455) |
| Inside Height, in (mm) |
19 (480) |
| Capacity (Struck), cu.ft (m3) |
9,0 (0,26) |
| Capacity (Heaped), cu.ft (m3) |
11,5 (0,33) |
| Weight, lbs (kg) |
290 (132) |
| Maximum lift height at pivot pin, in (mm) |
121 (3070) |
| Reach at maximum height, in (mm) |
40 (1010) |
| Clearance, bucket dumped, in (mm) |
98 (2480) |
| Maximum dumping angle, degrees |
40 |
| Reach, bucket on ground, in (mm) |
74 (1870) |
| Maximum digging depth, in (mm) |
8 (202) |
| Rollback angle, degrees |
13 |
| Lift capacity to maximum height at pivot pin, lbs (kg) |
2900 (1320) |
| Breakout force at pivot pin, lbs (kg) |
4800 (2177) |
| Raising time to full height, sec |
7,5 |
| Lowering time, sec |
5,9 |
| Bucket rollback time, sec |
3,0 |
