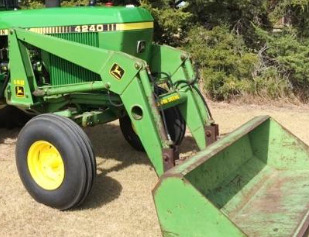

John Deere 148 Front End Loader
The
John Deere 148 loader is used for JD 2950 and 3130 tractors. The front end
loader is equipped with double-acting lift and bucket hydraulic cylinders.
The John Deere 148 front end loader has a lifting capacity (at pivot
pin) of 3100 lb (1406 kg) to full height of 126" (3200 mm), and bucket's
breakout force of 4700 lb (2131 kg).
The bucket dump clearance is 102" (2590 mm) at maximum dump angle of 38
degrees.
The John Deere 148 loader is compatible with the following
buckets: 61", 87", and 96" standard material buckets with capacities of
10.6 cu.ft (0.30 m3), 27.7 cu.f (0.79 m3), and 30.8 cu.ft (0.88 m3), or
73" heavy-duty
material bucket with a rated capacity of 12.7 cu.ft (0.35 m3).
| Tractor model |
JD 2950, 3130 |
| Front tires |
12,4-24 |
| Rear tires |
16,9-38 |
| Wheelbase, in (mm) |
97 (2460) |
| Pump capacity, gpm (lpm) |
23.0 (87.0) |
| Loader Model |
John Deere 148 |
| Leveling Configuration |
Non Self Leveling |
| Loader Weight, lbs (kg) |
1350 (612) |
| 61" Standard Material Bucket |
| Bucket width, in (mm) |
61 (1550) |
| Capacity, ft3 (m3) |
10.6 (0.30) |
| Weight, lbs (kg) |
190 (86) |
| 73" Heavy-Duty Material Bucket |
| Bucket width, in (mm) |
73 (1850) |
| Capacity, ft3 (m3) |
12.7 (0.35) |
| Weight, lbs (kg) |
283 (129) |
| 87" Standard Material Bucket |
| Bucket width, in (mm) |
87 (2200) |
| Capacity, ft3 (m3) |
27.7 (0.79) |
| Weight, lbs (kg) |
680 (310) |
| 96" Standard Material Bucket |
| Bucket width, in (mm) |
96 (2450) |
| Capacity, ft3 (m3) |
30.8 (0.88) |
| Weight, lbs (kg) |
650 (295) |
| Maximum lift height, in (mm) |
126 (3200) |
| Clearance at full height, bucket level, in (mm) |
121 (3070) |
| Clearance at full height, bucket dumped, in (mm) |
102 (2590) |
| Reach at maximum height, in (mm) |
32 (810) |
| Bucket dump angle at full height, degrees |
38 |
| Bucket rollback angle at ground, degrees |
11 |
| Lift capacity to full height at pivot point, lbs (kg) |
3100 (1406) |
| Boom breakout force at pivot point, lbs (kg) |
4700 (2131) |
