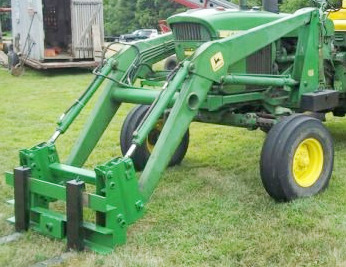

John Deere 158 Front End Loader

The John Deere 158 non self leveling loader was designed for JD 4040, 4050 tractors. The loader has double acting lift and bucket hydraulic cylinders.

The loader has a lifting capacity (at pin) of 3800 lbs (1725 kg) to maximum height of 156 in (3960 mm) and breakout force of 5000 lbs (2270 kg). A full dump clearance with a 37-degree max dump angle is 132 in (3350 mm).

The John Deere 158 front end loader is compatible with the following buckets: a 61" (1550 mm) standard material bucket with a rated capacity of 10.6 cu.ft (0.30 cu.m), 73" (1850 mm) heavy-duty material bucket with a rated capacity of 12.7 cu.ft (0.35 cu.m), 87" (2200 mm) standard material bucket with a rated capacity of 27.7 cu.ft (0.79 cu.m), or 96" (2450 mm) standard material bucket with a rated capacity of 30.8 cu.ft (0.88 cu.m).

Compatible Tractors
Tractor model John Deere 4040, 4050
Front tires 10,0-16
Rear tires 18,4-38
Wheelbase, in (mm) 105.3 (2670)
Pump capacity, gpm (lpm) 27.0 (100.0)
Rated pressure, psi (Bar) 2277 (157)

Loader
Loader Model John Deere 158 NSL
Leveling Configuration Non Self Leveling
Weight, lbs (kg) 1770 (803)

61" Standard Material Bucket
Bucket width, in (mm) 61 (1550)
Capacity, ft3 (m3) 10.6 (0.30)
Weight, lbs (kg) 190 (86)

73" Heavy-Duty Material Bucket
Bucket width, in (mm) 73 (1850)
Capacity, ft3 (m3) 12.7 (0.35)
Weight, lbs (kg) 283 (129)


87" Standard Material Bucket
Bucket width, in (mm) 87 (2200)
Capacity, ft3 (m3) 27.7 (0.79)
Weight, lbs (kg) 680 (310)

96" Standard Material Bucket
Bucket width, in (mm) 96 (2450)
Capacity, ft3 (m3) 30.8 (0.88)
Weight, lbs (kg) 650 (295)

Loader Dimensions
Maximum lift height, in (mm) 156 (3960)
Clearance at full height, bucket level, in (mm) 151 (3830)
Clearance at full height, bucket dumped, in (mm) 132 (3350)
Reach at maximum height, in (mm) 32 (810)
Bucket dump angle at full height, degrees 37
Bucket rollback angle at ground, degrees 12

Operating Data
Lift capacity to full height at pivot, lbs (kg) 3800 (1725)
Boom breakout force at pivot, lbs (kg) 5000 (2270)
