John Deere 168 Front End Loader
The

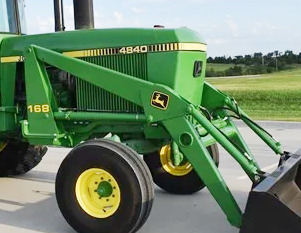

John Deere 168 NSL front end loader is used for John Deere 4640 tractor. The
front end loader has double acting hydraulic lift and bucket cylinders. The
loader’s maximum lift height is 151" (3830 mm) at pin, and bucket dump clearance
is 132" (3350 mm). The lift capacity is 3800 lbs (1723 kg) to max height at pin,
and boom breakout force is 5000 lbs (2268 kg).
The John Deere 168 loader can be equipped with the following buckets: a
96" (2450 mm) heavy-duty material bucket with a rated capacity of 30.8
cu.ft (0.88 cu.m), 96" (2450 mm) standard material bucket with a rated
capacity of 30.8 cu.ft (0.88 cu.m).
| Tractor model |
John Deere 4640 |
| Front tires |
10.0x16 |
| Rear tires |
20.8x38 |
| Hydraulic pressure, bar (psi) |
175 (2550) |
| Pump capacity, gpm (lpm) |
23.0 (87.0) |
| Loader model |
John Deere 168 NSL |
| Leveling configuration |
Non Self Leveling |
| Weight, lb (kg) |
1871 (848) |
| Bucket width, in (mm) |
96 (2450) |
| Capacity, ft3 (m3) |
30.8 (0.88) |
| Weight, lb (kg) |
650 (295) |
| Heavy-Duty Material Bucket |
| Bucket width, in (mm) |
96 (2450) |
| Capacity, ft3 (m3) |
30.8 (0.88) |
| Weight, lb (kg) |
780 (355) |
| Maximum lift height, in (mm) |
151 (3830) |
| Clearance at full height, bucket level, in (mm) |
151 (3830) |
| Clearance at full height, bucket dumped, in (mm) |
132 (3350) |
| Reach at maximum height, in (mm) |
32 (810) |
| Bucket dump angle at full height, degrees |
37 |
| Bucket rollback angle at ground, degrees |
12 |
| Lift capacity to full height at pivot, lb (kg) |
3800 (1723) |
| Boom breakout force at pivot, lb (kg) |
5000 (2268) |
