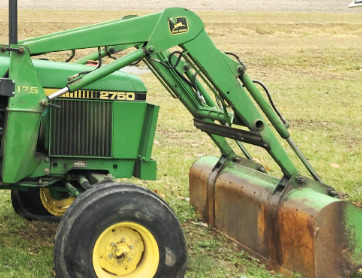

John Deere 175 Front End Loader
The
John Deere 175 non self leveling loader is available for JD 2350, 2550, 2750
tractors. The front end loader hydraulic system includes double-acting hydraulic
lifting and bucket cylinders.
The John Deere 175 front end loader has a lifting capacity (at pin) of
2015 lbs (914 kg) to maximum height of 124 inches (3140 mm), and
breakout force (bucket on ground) of 2681 lbs (1216 kg). The bucket dump
clearance with a 38-degree max dump angle is 118 inches (2990 mm).
The John Deere 175 loader can be equipped with a 61" (1550 mm) standard
material bucket with a rated capacity of 10.6 cu.ft (0.30 cu.m), or 73"
(1850 mm) bucket with a rated capacity of 12.7 cu.ft (0.35 cu.m).
| Tractor model |
JD 2350, 2550, 2750 |
| Front tires |
7,5x16 |
| Rear tires |
16,9x30 |
| Wheelbase, in (mm) |
89.2 (2260) |
| Pump capacity, gpm (lpm) |
13.0 (49.0) |
| Rated pressure, psi (Bar) |
2300 (160) |
| Loader Model |
John Deere 175 NSL |
| Leveling Configuration |
Non Self Leveling |
| Loader Weight, lbs (kg) |
995 (451) |
| 61" Standard Material Bucket |
| Bucket width, in (mm) |
61 (1550) |
| Capacity, ft3 (m3) |
10.6 (0.30) |
| Weight, lbs (kg) |
190 (86) |
| 73" Standard Material Bucket |
| Bucket width, in (mm) |
73 (1850) |
| Capacity, ft3 (m3) |
12.7 (0.35) |
| Weight, lbs (kg) |
223 (101) |
| Maximum lift height, in (mm) |
124 (3140) |
| Clearance at full height, bucket level, in (mm) |
118 (2990) |
| Clearance at full height, bucket dumped, in (mm) |
104 (2640) |
| Reach at maximum height, in (mm) |
36 (910) |
| Bucket dump angle at full height, degrees |
38 |
| Bucket rollback angle at ground, degrees |
14 |
| Lift capacity to full height at pivot, lbs (kg) |
2015 (914) |
| Boom breakout force at pivot, lbs (kg) |
2681 (1216) |
