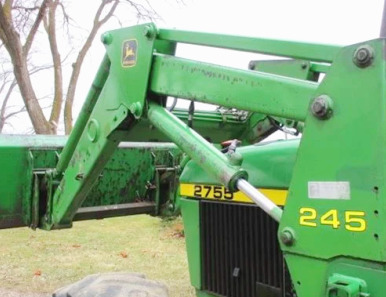

John Deere 245 Front End Loader
The
John Deere 245 mechanical self leveling front end loader is fitted to JD 2350,
2550, 2750, 2755 tractors. The front end loader has double acting boom and
bucket hydraulic cylinders.
The front end loader has a lift capacity (at pin) of 2750 lbs (1250 kg)
to full height of 127" (3220 mm) and boom breakout force of 4000 lbs
(1820 kg). The bucket dump clearance with a 43-degree max dump angle is
112" (2840 mm).
The John Deere 245 loader is compatible with the following buckets: a
61" (1550 mm) standard material bucket with a rated capacity of 10.6
cu.ft (0.30 cu.m), 73" (1850 mm) heavy-duty material bucket with a rated
capacity of 17.4 cu.ft (0.50 cu.m), and 85" (2150 mm) high volume bucket
with a rated capacity of 24.5 cu.ft (0.69 cu.m).
| Tractor model |
John Deere 2350, 2550, 2750, 2755 |
| Front tires |
7.5x16 |
| Rear tires |
16.9x30 |
| Wheelbase, in (mm) |
89.2 (2260) |
| Pump capacity, gpm (lpm) |
13.0 (49.0) |
| Rated pressure, psi (Bar) |
2500 (170) |
| Loader Model |
John Deere 245 MSL |
| Leveling Configuration |
Mechanical Self Leveling |
| Loader Weight, lbs (kg) |
1544 (700) |
| Bucket width, in (mm) |
61 (1550) |
| Capacity, ft3 (m3) |
10.6 (0.30) |
| Weight, lbs (kg) |
190 (86) |
| Heavy-Duty Material Bucket |
| Bucket width, in (mm) |
73 (1850) |
| Capacity, ft3 (m3) |
17.4 (0.50) |
| Weight, lbs (kg) |
305 (139) |
| Bucket width, in (mm) |
85 (2150) |
| Capacity, ft3 (m3) |
24.5 (0.69) |
| Weight, lbs (kg) |
394 (180) |
| Maximum lift height, in (mm) |
127 (3220) |
| Clearance at full height, bucket level, in (mm) |
132 (3350) |
| Clearance at full height, bucket dumped, in (mm) |
112 (2840) |
| Digging depths, in (mm) |
5 (127) |
| Overall height in carry position, in (mm) |
67 (1700) |
| Reach at maximum height, in (mm) |
37 (930) |
| Bucket dump angle at full height, degrees |
43 |
| Bucket rollback angle at ground, degrees |
20 |
| Lift capacity to full height at pivot, lbs (kg) |
2750 (1250) |
| Boom breakout force at pivot, lbs (kg) |
4000 (1820) |
