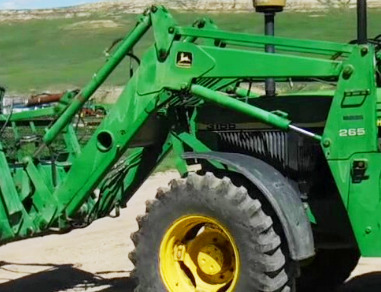

John Deere 265 Front End Loader

The John Deere 265 NSL loader was designed for John Deere 2950, 2955, 3150, 4450, 4455 tractors. The front end loader is equipped with double acting hydraulic bucket and boom cylinders.

The loader’s maximum lift height is 157" (3980 mm) at pin, and bucket dump clearance is 123" (3120 mm). The lift capacity is 3920 lbs (1780 kg) to maximum lift height at pin, and bucket's breakout force is 5730 lbs (2600 kg). The rated cycle times are 5.8 seconds raising to maximum height, and 3.6 seconds maximum bucket dumping.

The John Deere 265 front end loader is compatible with a 85" (2150 mm) high volume bucket with a rated capacity of 23.5 cu.ft (0.67 cu.m), or 96" (2450 mm) heavy-duty material bucket with a rated capacity of 30.8 cu.ft (0.88 cu.m).

Compatible Tractors
Tractor model John Deere 2950, 2955, 3150, 4450, 4455
Front tires 13.6x24
Rear tires 18.4x34
Hydraulic pressure, bar (psi) 175 (2550)
Pump capacity, gpm (lpm) 21.0 (80.0)

Loader
Loader model John Deere 265
Leveling system Non Self Leveling
Weight, lb (kg) 2619 (1187)

High Volume Bucket
Bucket width, in (mm) 85 (2150)
Capacity, ft3 (m3) 23.5 (0.67)
Weight, lb (kg) 660 (300)

Heavy-Duty Material Bucket
Bucket width, in (mm) 96 (2450)
Capacity, ft3 (m3) 30.8 (0.88)
Weight, lb (kg) 780 (355)


Loader Dimensions
Maximum lift height, in (mm) 157 (3980)
Clearance at full height, bucket level, in (mm) 150 (3810)
Clearance at full height, bucket dumped, in (mm) 123 (3120)
Reach at maximum height, in (mm) 25.6 (650)
Bucket rollback angle at ground, degrees 43

Operating Data
Lift capacity to full height at pivot, lb (kg) 3920 (1780)
Boom breakout force at pivot, lb (kg) 5730 (2600)

Cycle Times
Loader raise, sec 5.8
Loader lower, sec 4.8
Bucket dump, sec 3.6
Bucket rollback, sec 3.8
