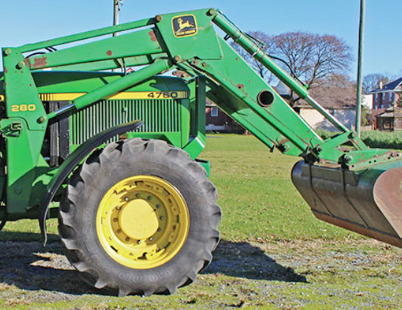

John Deere 280 Front End Loader

The John Deere 280 mechanical self leveling loader is compatible with John Deere 4050, 4055 tractors. The front end loader has double acting lift and bucket hydraulic cylinders.

The front end loader has a lift capacity (at pin) of 3718 lbs (1686 kg) to maximum height of 178" (4520 mm) and boom breakout force of 5126 lbs (2325 kg). The bucket dump clearance is 152" (3860 mm) at maximum dump angle of 44 degrees.

The John Deere 280 loader can be equipped with the following buckets:a 96" (2450 mm) standard material bucket with a rated capacity of 30.8 cu.ft (0.88 cu.m), 96" (2450 mm) heavy-duty multi-purpose bucket with a rated capacity of 30.8 cu.ft (0.88 cu.m), or 85" (2150 mm) high volume bucket with a rated capacity of 26.3 cu.ft (0.75 cu.m).

Compatible Tractors
Tractor model John Deere 4050, 4055
Front tires 10.0x16
Rear tires 18.4x38
Wheelbase, in (mm) 105.3 (2670)
Pump capacity, gpm (lpm) 27.0 (100.0)
Rated pressure, psi (Bar) 2277 (157)

Loader
Loader model John Deere 280 MSL
Leveling configuration Mechanical Self Leveling
Weight, lb (kg) 2795 (1267)

Standard Material Bucket
Bucket width, in (mm) 96 (2450)
Capacity, ft3 (m3) 30.8 (0.88)
Weight, lb (kg) 650 (295)

High Capacity Bucket
Bucket width, in (mm) 85 (2150)
Capacity, ft3 (m3) 26.3 (0.75)
Weight, lb (kg) 495 (225)


Heavy-Duty Multi-Purpose Bucket
Bucket width, in (mm) 96 (2450)
Capacity, ft3 (m3) 30.8 (0.88)
Weight, lb (kg) 1155 (526)

Loader Dimensions
Maximum lift height, in (mm) 178 (4520)
Clearance at full height, bucket level, in (mm) 173 (4390)
Clearance at full height, bucket dumped, in (mm) 152 (3860)
Reach at maximum height, in (mm) 26 (660)
Bucket dump angle at full height, degrees 44
Bucket rollback angle at ground, degrees 41

Operating Data
Lift capacity to full height at pivot, lb (kg) 3718 (1686)
Boom breakout force at pivot, lb (kg) 5126 (2325)
