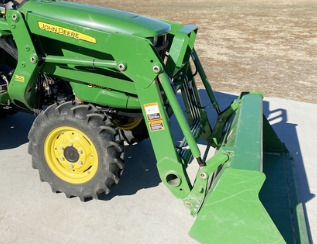

John Deere 305 Front End Loader

The John Deere 305 loader is used for John Deere 3032E, 3036E, 3038E tractors. The front end loader has double acting bucket and lift hydraulic cylinders.

The John Deere 305 front end loader has a lift capacity (at pivot pin) of 1186 lbs (540 kg) to full height of 84 in (2140 mm), and a breakout force of 1704 lbs (775 kg). A full dump clearance with a 44-degree maximum dump angle is 63 in (1600 mm). The time to raise the boom is 3.3 sec. from ground level to full height, and bucket dump time is 1.8 seconds.

The John Deere 305 is equipped with a 61" (1550 mm) standard material bucket with a heaped capacity of 9.0 cu.ft (0.26 m3) and weight of 190 lbs (87 kg).

Compatible Tractors
Tractor Model John Deere 3032E, 3036E, 3038E
Front Tires 25x5.50-14
Rear Tires 15.0x19.5
Hydraulic System Flow 5.3 gpm (20.2 lpm)
Maximum Hydraulic Pressure 172 bar (2500 psi)

Loader
Loader Model John Deere 305 NSL
Leveling System Non-Self Leveling
Weight 615 lbs (280 kg)

Standard Material Bucket
Width 61" (1550 mm)
Struck capacity 9.0 cu.ft (0.26 m3)
Heaped capacity 10.8 cu.ft (0.31 m3)
Bucket weight 190 lbs (87 kg)


Loader Dimensions
Maximum Lift Height at Pin 84 in (2140 mm)
Clearance With Bucket Dumped 63 in (1600 mm)
Reach At Maximum Lift Height 24 in (605 mm)
Maximum Dump Angle 44 degrees
Maximum Rollback Angle 31.5 degrees

Operating Data
Lift Capacity to Max Height at Pivot Point 1186 lbs (540 kg)
Lift Capacity to Max Height at 500 mm (19.7") Forward of Pivot Point 845 lbs (390 kg)
Lift Capacity to 1500 mm (59") Height at Pivot Point 1295 lbs (588 kg)
Lift Capacity to 1500 mm (59") Height at 500 mm (19.7") Forward of Pivot Point 977 lbs (445 kg)
Breakout Force at Pivot Point 1704 lbs (775 kg)
Breakout Force at 500 mm (19.7") Forward of Pivot Point 1205 lbs (545 kg)

Cycle Times
Loader Raising Time 3.3 seconds
Loader Lowering Time 2.8 seconds
Bucket Dump Time 1.8 seconds
Bucket Rollback Time 1.9 seconds
