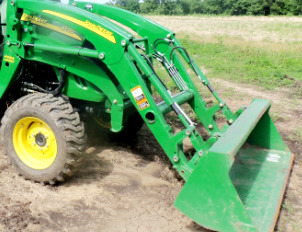

John Deere 400X Front End Loader

The John Deere 400X loader was designed for John Deere 4120, 4320, and 4520 tractors. The front end loader is equipped with double acting hydraulic bucket and boom cylinders.

The John Deere 400X loader’s maximum lift height is 112.8 inches (2860 mm) at pin, and reach at maximum lift height is 24.7 inches (620 mm). The lift capacity is 2368 lbs (1074 kg) to maximum lift height at pin, and bucket's breakout force is 3506 lbs (1590 kg). The rated cycle times are 3.7 seconds raising to maximum height, and 2.4 seconds maximum bucket dumping.

The John Deere 400X is compatible with the following buckets: a 61" (1550 mm) bucket with a heaped capacity of 10.8 cu.ft (0.31 m3), and 73" (1850 mm) bucket with a heaped capacity of 12.8 cu.ft (0.37 m3).

Compatible Tractors
Tractor Model John Deere 4120, 4320, 4520
Front Tires 10.0x16.5
Rear Tires 17.5Lx24
Hydraulic System Flow 12.0 gal/min (45.5 l/min)
Maximum Hydraulic Pressure 172 bar (2500 psi)

Loader
Loader Model John Deere 400X NSL
Leveling System Non-Self Leveling
Weight 927 lbs (420 kg)

61" Standard Material Bucket
Width 61" (1550 mm)
Struck capacity 9.0 cu.ft (0.26 m3)
Heaped capacity 10.8 cu.ft (0.31 m3)
Weight 190 lbs (87 kg)

73" Standard Material Bucket
Width 73" (1850 mm)
Struck capacity 10.7 cu.ft (0.30 m3)
Heaped capacity 12.8 cu.ft (0.37 m3)
Bucket weight 227 lbs (103 kg)


Loader Dimensions
Maximum Lift Height at Pin 112.8" (2860 mm)
Reach At Maximum Lift Height 24.7" (620 mm)
Maximum Dump Angle 46 degrees
Digging Depth 9" (228 mm)
Maximum Rollback Angle 31 degrees

Operating Data
Lift Capacity to Max Height at Pivot Point 2368 lbs (1074 kg)
Lift Capacity to Max Height at 500 mm (19.7") Forward of Pivot Point 1742 lbs (790 kg)
Lift Capacity to 1500 mm (59") Height at Pivot Point 2634 lbs (1195 kg)
Lift Capacity to 1500 mm (59") Height at 500 mm (19.7") Forward of Pivot Point 2180 lbs (990 kg)
Breakout Force at Pivot Point 3506 lbs (1590 kg)
Breakout Force at 500 mm (19.7") Forward of Pivot Point 2640 lbs (1197 kg)

Cycle Times
Loader Raising Time 3.7 seconds
Loader Lowering Time 2.5 seconds
Bucket Dump Time 2.4 seconds
Bucket Rollback Time 1.4 seconds
