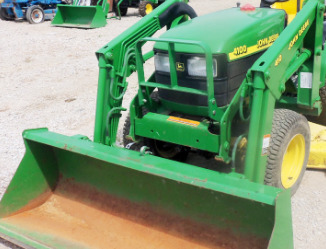

John Deere 410 Front End Loader
The
John Deere 410 non self-leveling loader is used for John Deere 4100 (4WD), 4110,
4115 tractors. The loader has double acting lifting and bucket hydraulic
cylinders.
The loader has a lift capacity (at bucket pin) of 882 lbs (400 kg) to
full height of 74" (1879 mm), boom breakout force of 2257 lbs (1026 kg),
and rollback force of 1661 lbs (755 kg) at ground-level line. The bucket
dump clearance is 55" (1400 mm) at maximum dump angle of 45 degrees.
The John Deere 410 loader is compatible with a 49" (1250 mm) standard
material bucket with a rated capacity of 9.3 cu.ft (0.27 cu.m).
| Tractor Model |
John Deere 4100 (4WD), 4110, 4115 |
| Wheelbase |
1468 mm (57.8 in) |
| Front Tires |
5.00-12 4PR R1 |
| Rear Tires |
8.00-16 4PR R1 |
| Hydraulic System Rated Flow |
27.7 L/Min (7.3 gal/min) |
| Maximum Pressure |
167 bar (2418 psi) |
| Loader Model |
JD 410 NSL |
| Leveling Configuration |
Non Self-Leveling |
| Weight |
340 kg (750 lbs) |
| Width |
1250 mm (49 in) |
| Length |
618 mm (24.3 in) |
| Capacity |
0.27 m3 (9.3 cu.ft) |
| Mass |
70 kg (154 lbs) |
| Maximum lift height to pivot pin |
1879 mm (74 in) |
| Maximum lift height under bucket level |
1722 mm (68 in) |
| Clearance with bucket dumped |
1400 mm (55 in) |
| Reach at maximum height |
629 mm (24.8 in) |
| Maximum dump angle |
45 degrees |
| Maximum dump angle at ground |
123 degrees |
| Reach with bucket on ground |
1133 mm (44.6 in) |
| Bucket rollback angle |
25 degrees |
| Rollback angle at full height |
64 degrees |
| Digging depth |
152 mm (6 in) |
| Overall height in carry position |
1171 mm (46 in) |
| Lift capacity to maximum height at pivot pin |
400 kg (882 lbs) |
| Lift capacity to maximum height, 19.5" (0.5m) forward of pivot pin |
280 kg (618 lbs) |
| Lift capacity to 59" (1.5m) height at pivot pin |
486 kg (1072 lbs) |
| Lift capacity to 59" (1.5m) height, 19.5" (0.5m) forward of pivot pin |
355 kg (781 lbs) |
| Breakout force at pivot pin |
1026 kg (2257 lbs) |
| Breakout force, 19.5" (0.5m) forward of pivot pin |
682 kg (1500 lbs) |
| Rollback force at maximum height |
845 kg (1858 lbs) |
| Rollback force at 59" (1.5m) height at pivot pin |
985 kg (2166 lbs) |
| Rollback force at ground-level line |
755 kg (1661 lbs) |
