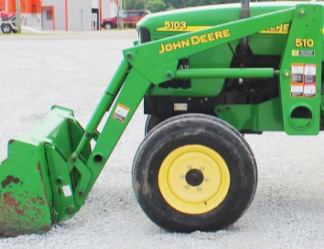

John Deere 510 Front End Loader

The John Deere 510 front end loader is designed to fit John Deere 5103, 5203, 5303, 5220 tractors. The 510 loader hydraulic system includes double-acting bucket and boom hydraulic cylinders.

The 61-in standard material bucket has a lenght of 650 mm (25.5 in) and weight of 140 kg (309 lbs). The John Deere 510 front end loader has a lift capacity (at pin) of 1000 kg (2200 lbs) to max height of 2850 mm (112 in), and boom breakout force is 2023 kg (4451 lbs) at bucket pin, or 1338 kg (2944 lbs) at 31.5" forward of pin.

The bucket dump clearance with a 43-degree max dump angle is 2140 mm (84 in). The bucket rollback force is 1410 kg (3109 lbs) at ground level line.

Compatible Tractors
Tractor Model John Deere 5103, 5203, 5303, 5220
Front Tires 7.50x16-6PR
Rear Tires 13.6x28-6PR
Wheelbase 2060 mm (81 in)
Hydraulic System Flow 43.1 L/Min (11.4 gal/min)
Maximum Hydraulic Pressure 190 bar (2755 psi)

Loader
Loader Model JD 510 Loader
Leveling System Non-Self Leveling
Lift Cylinder Bore 56 mm (2.2 in)
Lift Cylinder Stroke 539 mm (21.2 in)
Lift Cylinder Rod Diameter 32 mm (1.2 in)
Bucket Cylinder Bore 56 mm (2.2 in)
Bucket Cylinder Stroke 426 mm (16.7 in)
Bucket Cylinder Rod Diameter 32 mm (1.2 in)

Standard Material Bucket
Width 1550 mm (61 in)
Length 650 mm (25.5 in)
Weight 140 kg (309 lbs)


Loader Dimensions
Maximum Lift Height to Pivot Pin 2850 mm (112 in)
Maximum Lift Height under Bucket Level 2605 mm (102.5 in)
Maximum Lift Height with Bucket Dumped 2140 mm (84 in)
Reach at Max Lift Height to Hood Guard 615 mm (24 in)
Reach at Bucket on Ground 1730 mm (68 in)
Maximum Dump Angle 43 deg
Maximum Dump Angle at Ground 114 deg
Maximum Rollback Angle 30 deg
Rollback Angle at Full Height 115 deg
Overall Length 4445 mm (175 in)
Digging Depth 180 mm (7 in)
Overall Height In Carry Position 1442 mm (57 in)

Operating Data
Lift Capacity to Max Height at Pivot Point 1000 kg (2200 lbs)
Lift Capacity to Max Height at 0.8m (31.5") Forward of Pivot Point 682 kg (1500 lbs)
Lift Capacity to 1.5m (59") Height at Pivot Point 1380 kg (3043 lbs)
Lift Capacity to 1.5m (59") Height at 0.8m (31.5") Forward of Pivot Point 980 kg (2161 lbs)
Breakout Force at Pivot Point 2023 kg (4451 lbs)
Breakout Force at 0.8m (31.5") Forward of Pivot Point 1338 kg (2944 lbs)
Bucket Rollback Force at Max Height 980 kg (2158 lbs)
Bucket Rollback Force at 1.5m (59") Lift Height 1415 kg (3118 lbs)
Bucket Rollback Force at Ground Level Line 1410 kg (3109 lbs)
