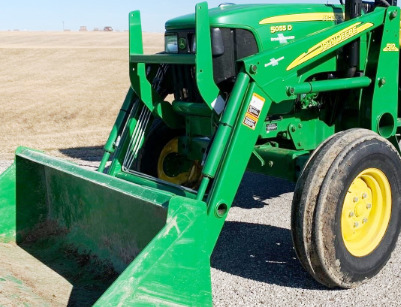

John Deere 512 Front End Loader

The John Deere 512 NSL front end loader is fitted to JD 5103, 5203, 5303, 5403, 5045E, 5055E, 5065E, and 5075E tractors. The front end loader is equipped with double acting hydraulic bucket and lift cylinders.

The loader’s max lift height at pin is 112" (2850 mm) for 5103-5403 or 113" (2875 mm) for 5045E-5075E, and bucket dump clearance is 84" (2140 mm). The lift capacity at max height (bucket pin) is 2200 lb (1000 kg) for 5103-5403 or 2453 lb (1115 kg) for 5045E-5075E, and boom breakout force is 4451 lb (2023 kg) for 5103-5403 or 4781 lb (2173 kg) for 5045E-5075E.

The boom raising time is 3.7 seconds from ground level to maximum height, and bucket dump time is 3.4 seconds. The John Deere 512 loader can be equipped with the following buckets:a 66" (1675 mm) standard material bucket with heaped capacity of 11.9 cu.ft (0.34 cu.m), or 73" (1850 mm) standard material bucket with heaped capacity of 13.1 cu.ft (0.37 cu.m).

Compatible Tractors
Tractor models John Deere 5103, 5203, 5303, 5403, 5045E, 5055E, 5065E, 5075E
Front tires 7.50x16
Rear tires 13.6x28
Pump capacity, gpm (lpm) 11.4 (43.0)
Hydraulic pressure, bar (psi) 195 (2830)

Loader
Loader model John Deere 512
Leveling system Non Self Leveling
Weight, lb (kg) 617 (280)

66" Standard Material Bucket
Width, in (mm) 66 (1675)
Struck capacity, ft3 (m3) 9.5 (0.27)
Heaped capacity, ft3 (m3) 11.9 (0.34)
Weight, lb (kg) 297 (135)

73" Standard Material Bucket
Width, in (mm) 73 (1850)
Struck capacity, ft3 (m3) 10.7 (0.30)
Heaped capacity, ft3 (m3) 13.1 (0.37)
Weight, lb (kg) 351 (159)

Loader Dimensions
Maximum lift height at pivot pin (JD 5103-5403), in (mm) 112 (2850)
Maximum lift height at pivot pin (JD 5045E-5075E), in (mm) 113 (2875)
Maximum lift height under level bucket (JD 5103-5403), in (mm) 102.5 (2605)
Maximum lift height under level bucket (JD 5045E-5075E), in (mm) 105 (2680)
Clearance with bucket dumped, in (mm) 84 (2140)
Reach at maximum lift height (JD 5103-5403), in (mm) 24 (615)
Reach at maximum lift height (JD 5045E-5075E), in (mm) 24.5 (625)
Reach with bucket on ground level (JD 5103-5403), in (mm) 68 (1730)
Reach with bucket on ground level (JD 5045E-5075E), in (mm) 72 (1825)
Maximum dump angle (JD 5103-5403), degrees 43
Maximum dump angle (JD 5045E-5075E), degrees 53
Maximum rollback angle, degrees 30
Digging depth (JD 5103-5403), in (mm) 7 (180)
Digging depth (JD 5045E-5075E), in (mm) 4 (108)
Overall height in carry position, in (mm) 57 (1440)


Operating Data
Lift Capacity to maximum height at pivot pin (JD 5103-5403), lbs (kg) 2200 (1000)
Lift Capacity to maximum height at pivot pin (JD 5045E-5075E), lbs (kg) 2453 (1115)
Lift Capacity to max. height at 31.5" (0.8m) forward of pivot pin (JD 5103-5403), lbs (kg) 1500 (682)
Lift Capacity to max. height at 31.5" (0.8m) forward of pivot pin (JD 5045E-5075E), lbs (kg) 1538 (698)
Lift Capacity to 59" (1.5m) height at pivot pin (JD 5103-5403), lbs (kg) 3043 (1380)
Lift Capacity to 59" (1.5m) height at pivot pin (JD 5045E-5075E), lbs (kg) 3295 (1495)
Lift Capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (JD 5103-5403), lbs (kg) 2161 (980)
Lift Capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (JD 5045E-5075E), lbs (kg) 2350 (1066)
Breakout force at pivot pin (JD 5103-5403), lbs (kg) 4451 (2023)
Breakout force at pivot pin (JD 5045E-5075E), lbs (kg) 4781 (2173)
Breakout force at 31.5" (0.8m) forward of pivot pin (JD 5103-5403), lbs (kg) 2944 (1338)
Breakout force at 31.5" (0.8m) forward of pivot pin (JD 5045E-5075E), lbs (kg) 3172 (1442)
Bucket rollback force at maximum height (JD 5103-5403), lbs (kg) 2158 (981)
Bucket rollback force at maximum height (JD 5045E-5075E), lbs (kg) 1953 (887)
Bucket rollback force at ground level (JD 5103-5403), lbs (kg) 3109 (1413)
Bucket rollback force at ground level (JD 5045E-5075E), lbs (kg) 3181 (1446)

Cycle Times
Raising time to full height 3.7 sec.
Lowering time 2.5 sec.
Bucket dumping time 3.4 sec
Bucket rollback time 2.3 sec.
