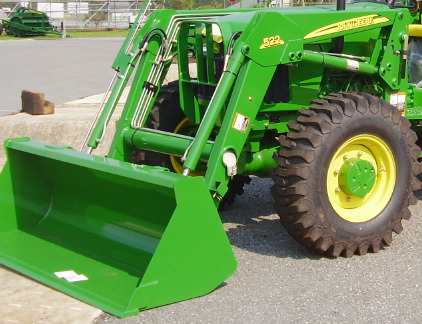

John Deere 522 Front End Loader

The John Deere 522 non self leveling loader is fitted to John Deere 5205, 5305, 5225, 5325 tractors. The front end loader has double acting lift and bucket hydraulic cylinders.

The loader has a maximum lift height of 122" (3090 mm) at pin and bucket dump clearance of 100" (2540 mm). The lifting capacity is rated at 2731 lbs (1239 kg) to max height, and boom breakout force is 5600 lbs (2545 kg).

The John Deere 522 loader is compatible with the following buckets: a 61" (1550 mm) standard material bucket with a heaped capacity of 15.6 cu.ft (0.43 m3), 73" (1850 mm) standard material bucket with a heaped capacity of 18.7 cu.ft (0.52 m3), or 85" (2150 mm) standard material bucket with a heaped capacity of 21.7 cu.ft (0.62 m3).

Compatible Tractors
Tractor models John Deere 5205, 5305, 5225, 5325
Front tires 7.50x16
Rear tires 14.9x28
Pump capacity, gpm (lpm) 11.5 (43.5)
Hydraulic pressure, psi (bar) 2800 (193)

Loader
Loader model John Deere 522 NSL
Leveling system Non Self Leveling
Lift cylinder bore/stroke, in (mm) 2.5 (63) / 21.3 (540)
Lift cylinder rod diameter, in (mm) 1.6 (40)
Bucket cylinder bore/stroke, in (mm) 2.2 (56) / 22.5 (572)
Bucket cylinder rod diameter, in (mm) 1.26 (32)

61" Standard Material Bucket
Width, in (mm) 61 (1550)
Struck capacity, ft3 (m3) 13.0 (0.36)
Heaped capacity, ft3 (m3) 15.6 (0.43)
Weight, lb (kg) 264 (120)

73" Standard Material Bucket
Width, in (mm) 73 (1850)
Struck capacity, ft3 (m3) 15.6 (0.43)
Heaped capacity, ft3 (m3) 18.7 (0.52)
Weight, lb (kg) 330 (150)

85" Standard Material Bucket
Width, in (mm) 85 (2150)
Struck capacity, ft3 (m3) 17.1 (0.50)
Heaped capacity, ft3 (m3) 21.7 (0.62)
Weight, lb (kg) 440 (200)


Loader Dimensions
Maximum lift height at bucket pivot pin (JD 5225, 5325), in (mm) 122 (3090)
Maximum lift height at bucket pivot pin (JD 5205, 5305), in (mm) 112 (2845)
Maximum lift height under level bucket (JD 5225, 5325), in (mm) 114.5 (2910)
Maximum lift height under level bucket (JD 5205, 5305), in (mm) 106.5 (2705)
Clearance with bucket dumped (JD 5225, 5325), in (mm) 100 (2540)
Clearance with bucket dumped (JD 5205, 5305), in (mm) 89 (2280)
Reach at maximum lift height (JD 5225, 5325), in (mm) 12.3 (312)
Reach at maximum lift height (JD 5205, 5305), in (mm) 29 (745)
Reach with bucket on ground level (JD 5225, 5325), in (mm) 66 (1680)
Reach with bucket on ground level (JD 5205, 5305), in (mm) 69 (1750)
Maximum dump angle (JD 5225, 5325), degrees 32
Maximum dump angle (JD 5205, 5305), degrees 42
Maximum rollback angle (JD 5225, 5325), degrees 24
Maximum rollback angle (JD 5205, 5305), degrees 23
Digging Depth (JD 5225, 5325), in (mm) 3.6 (93)
Digging Depth (JD 5205, 5305), in (mm) 3.5 (90)

Operating Data
Lift Capacity to maximum height at pivot pin (JD 5225, 5325), lbs (kg) 2731 (1239)
Lift Capacity to maximum height at pivot pin (JD 5205, 5305), lbs (kg) 2115 (960)
Lift Capacity to max. height at 31.5" (0.8m) forward of pin (JD 5225, 5325), lbs (kg) 1740 (790)
Lift Capacity to max. height at 31.5" (0.8m) forward of pin (JD 5205, 5305), lbs (kg) 1610 (730)
Lift Capacity to 59" (1.5m) height at pivot pin (JD 5225, 5325), lbs (kg) 3717 (1686)
Lift Capacity to 59" (1.5m) height at pivot pin (JD 5205, 5305), lbs (kg) 3214 (1458)
Lift Capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pin (JD 5225, 5325), lbs (kg) 2660 (1207)
Lift Capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pin (JD 5205, 5305), lbs (kg) 2490 (1130)
Breakout force at pivot pin with bucket on ground (JD 5225, 5325), lbs (kg) 5600 (2545)
Breakout force at pivot pin with bucket on ground (JD 5205, 5305), lbs (kg) 4495 (2045)
Breakout force at 31.5" (0.8m) forward of pin (JD 5225, 5325), lbs (kg) 3732 (1696)
Breakout force at 31.5" (0.8m) forward of pin (JD 5205, 5305), lbs (kg) 3305 (1502)
Bucket rollback force at maximum height (JD 5225, 5325), lbs (kg) 3530 (1605)
Bucket rollback force at maximum height (JD 5205, 5305), lbs (kg) 3444 (1565)
Bucket rollback force at ground level (JD 5225, 5325), lbs (kg) 3800 (1727)
Bucket rollback force at ground level (JD 5205, 5305), lbs (kg) 3597 (1635)
