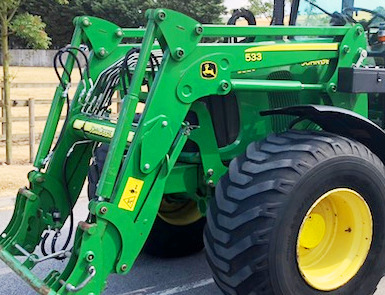

John Deere 533 Front End Loader

The John Deere 533 NSL or MSL loader is used for John Deere 5215, 5315, 5620, 5720, 5820 tractors. The front end loader is equipped with double acting hydraulic bucket and lift cylinders.

The loader has a lift capacity (at pin) of 3590 lbs (1632 kg) to maximum height of 134.5" (3420 mm), and boom breakout force of 3215 lbs (1461 kg) at 31" (0.8m) from pin. The clearance with a bucket dumped is 97.2" (2470 mm) at max dump angle of 63 degrees.

The John Deere 533 front end loader can be equipped with the following buckets: a 63" (1600 mm) standard material bucket with a heaped capacity of 20 cu.ft (0.57 m3), 71" (1800 mm) standard material bucket with a heaped capacity of 23.4 cu.ft (0.67 m3), and 79" (2000 mm) standard material bucket with a heaped capacity of 24.8 cu.ft (0.71 m3).

Compatible Tractors
Tractor models John Deere 5215, 5315, 5620, 5720, 5820
Front tires 7.50x18
Rear tires 18.4x30
Pump capacity, gpm (lpm) 11.5 (43.0)
Hydraulic pressure, bar (psi) 190 (2750)

Loader
Loader model John Deere 533 NSL/MSL
Leveling system Non Self Leveling / Mechanical Self Leveling
Weight (NSL), lb (kg) 866 (393)
Weight (MSL), lb (kg) 961 (436)

63" Standard Material Bucket
Width, in (mm) 63 (1600)
Struck capacity, ft3 (m3) 16.0 (0.45)
Heaped capacity, ft3 (m3) 20.0 (0.57)

71" Standard Material Bucket
Width, in (mm) 71 (1800)
Struck capacity, ft3 (m3) 18.7 (0.53)
Heaped capacity, ft3 (m3) 23.4 (0.67)

79" Standard Material Bucket
Width, in (mm) 79 (2000)
Struck capacity, ft3 (m3) 20.0 (0.57)
Heaped capacity, ft3 (m3) 24.8 (0.71)


Loader Dimensions
Maximum lift height at pivot pin (JD 5215, 5315), in (mm) 133 (3380)
Maximum lift height at pivot pin (JD 5620, 5720), in (mm) 134.5 (3420)
Maximum lift height under level bucket (JD 5215, 5315), in (mm) 124.4 (3160)
Maximum lift height under level bucket (JD 5620, 5720), in (mm) 126 (3200)
Clearance with bucket dumped (JD 5215, 5315), in (mm) 96.4 (2450)
Clearance with bucket dumped (JD 5620, 5720), in (mm) 97.2 (2470)
Reach at maximum lift height (JD 5215, 5315), in (mm) 17 (430)
Reach at maximum lift height (JD 5620, 5720), in (mm) 12.8 (325)
Reach with bucket on ground level (JD 5215, 5315), in (mm) 66.7 (1695)
Reach with bucket on ground level (JD 5620, 5720), in (mm) 57.1 (1450)
Maximum dump angle (JD 5215, 5315), degrees 60
Maximum dump angle (JD 5620, 5720), degrees 63
Maximum rollback angle (JD 5215, 5315), degrees 40
Maximum rollback angle (JD 5620, 5720), degrees 36
Digging depth (JD 5215, 5315), in (mm) 2.6 (67)
Digging depth (JD 5620, 5720), in (mm) 1.9 (48)

Operating Data
Lift Capacity to maximum height at pivot pin (JD 5215, 5315 NSL), lbs (kg) 3590 (1632)
Lift Capacity to maximum height at pivot pin (JD 5215, 5315 MSL), lbs (kg) 3047 (1385)
Lift Capacity to maximum height at pivot pin (JD 5620, 5720 NSL), lbs (kg) 3567 (1621)
Lift Capacity to maximum height at pivot pin (JD 5620, 5720 MSL), lbs (kg) 3043 (1383)
Breakout force at 31.5" (800 mm) forward of pivot pin (JD 5215, 5315 NSL), lbs (kg) 2580 (1173)
Breakout force at 31.5" (800 mm) forward of pivot pin (JD 5215, 5315 MSL), lbs (kg) 3140 (1428)
Breakout force at 31.5" (800 mm) forward of pivot pin (JD 5620, 5720 NSL), lbs (kg) 2622 (1192)
Breakout force at 31.5" (800 mm) forward of pivot pin (JD 5620, 5720 MSL), lbs (kg) 3215 (1461)
