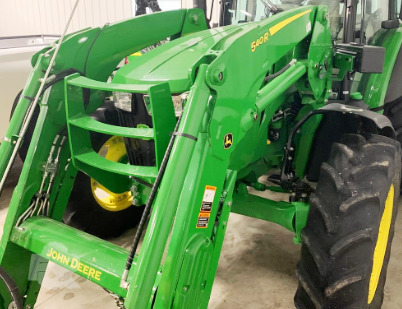

John Deere 540R Front End Loader

The John Deere 540R loader is fitted to John Deere 5090R, 5100R, 5115R, 5125R, John Deere 5175M, 5190M, 5100M, 5115M tractors. The loader has double acting bucket and boom hydraulic cylinders.

The front end loader has a lift capacity of (at pin) 3406 lbs (1545 kg) to max height of 142" (3604 mm), and boom breakout force of 5291 lbs (2400 kg). A full dump clearance with a 65-degree max dump angle is 101" (2570 mm). The raising time is 3.9 seconds from ground level to max height, and bucket dump time is 2.5 seconds.

 The John Deere 540R front-end loader is equipped with a 73" (1850 mm) heavy-duty material bucket with a heaped capacity of 22.5 cu.ft (0.64 m3), or 85" (2150 mm) heavy-duty material bucket with a heaped capacity of 25.8 cu.ft (0.74 m3).

Compatible Tractors
Tractor models John Deere 5090R, 5100R, 5115R, 5125R, 5175M, 5190M, 5100M, 5115M
Front tires 13.6R24
Rear tires 16.9R34
Pump capacity 73 L/min (19 gal/min)
Rated pressure 200 bar (2900 psi)

Loader
Loader model John Deere 540R MSL / NSL
Leveling system Mechanical Self Leveling / Non Self Leveling
Weight 1200 kg (2640 lb)

73" Heavy-Duty Materials Bucket
Width 1850 mm (73 in)
Struck capacity 0.52 m3 (18.1 cu.ft)
Heaped capacity 0.64 m3 (22.5 cu.ft)
Weight 248 kg (545 lb)

85" Heavy-Duty Material Bucket
Width 2150 mm (85 in)
Struck capacity 0.59 m3 (20.9 cu.ft)
Heaped capacity 0.74 m3 (25.8 cu.ft)
Weight 275 kg (605 lb)


Loader Dimensions
Maximum lift height 3604 mm (142 in)
Clearance at full height, bucket level 3364 mm (132 in)
Clearance at full height, bucket dumped 2570 mm (101 in)
Digging depth (MSL) 111 mm (4 in)
Digging depth (NSL) 139 mm (5 in)
Reach at maximum height (MSL) 884 mm (35 in)
Reach at maximum height (NSL) 794 mm (31 in)
Reach at ground, bucket level (MSL) 2427 mm (96 in)
Reach at ground, bucket level (NSL) 2385 mm (94 in)
Bucket dump angle at full height (MSL) 65 deg
Bucket dump angle at full height (NSL) 64 deg
Bucket rollback angle at ground 47 deg

Operating Data
Lift capacity to full height at pivot (MSL) 1545 kg (3406 lb)
Lift capacity to full height at pivot (NSL) 1926 kg (4246 lb)
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (MSL) 1659 kg (3657 lb)
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (NSL) 1290 kg (2844 lb)
Lift capacity to 59" (1.5m) height at pivot (MSL) 1951 kg (4301 lb)
Lift capacity to 59" (1.5m) height at pivot (NSL) 2101 kg (4632 lb)
Boom breakout force at pivot (MSL) 2400 kg (5291 lb)
Boom breakout force at pivot (NSL) 2243 kg (4945 lb)
Boom breakout force at 31.5" (0.8m) ahead of pivot (MSL) 1950 kg (4299 lb)
Boom breakout force at 31.5" (0.8m) ahead of pivot (NSL) 1567 kg (3455 lb)

Cycle Times
Loader raise, sec 3,9
Loader lower, sec 2,9
Bucket dump, sec 2,5
Bucket rollback, sec 2,2
