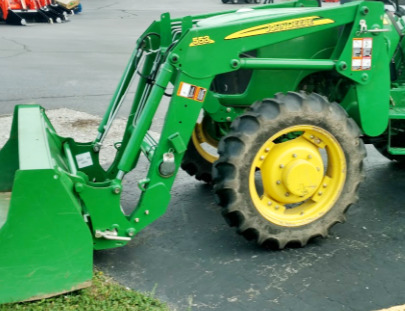

John Deere 553 Front End Loader

The John Deere 553 non self leveling front end loader fits John Deere 5045E, 5055E, 5045D, 5055D tractors. The front end loader has double acting bucket and lifting hydraulic cylinders.

The front end loader has a lift capacity (at pin) of 3133 lbs (1421 kg) to 122" (3090 mm) maximum height and breakout force (bucket on ground) of 5378 lbs (2439 kg). The bucket dump clearance is 94" (2380 mm) at max dump angle of 41 degrees.

Available buckets for the John Deere 553 loader: a 73" (1850 mm) standard material bucket with a heaped capacity of 15.1 cu.ft (0.43 m3), and 85" (2150 mm) heavy-duty material bucket with a heaped capacity of 25.8 cu.ft (0.74 m3).

Compatible Tractors
Tractor models John Deere 5045E, 5055E, 5045D, 5055D
Front tires 16.5x16
Rear tires 14.9x28
Pump capacity, gpm (lpm) 18.0 (69.0)
Rated pressure, psi (Bar) 2830 (195)

Loader
Loader model John Deere 553 NSL
Leveling configuration Non Self Leveling
Weight, lb (kg) 1935 (880)

Standard Material Bucket
Width, in (mm) 73 (1850)
Struck capacity, cu.ft (m3) 12.6 (0.36)
Heaped capacity, cu.ft (m3) 15.1 (0.43)
Weight, lb (kg) 348 (158)

Heavy-Duty Material Bucket
Width, in (mm) 85 (2150)
Struck capacity, cu.ft (m3) 20.9 (0.59)
Heaped capacity, cu.ft (m3) 25.8 (0.74)
Weight, lb (kg) 605 (275)

Loader Dimensions
Maximum lift height, in (mm) 122 (3090)
Clearance at full height, bucket dumped (JD 5045E, 5055E), in (mm) 94 (2380)
Clearance at full height, bucket dumped (JD 5045D, 5055D), in (mm) 89 (2252)
Reach at maximum height, in (mm) 35 (880)
Digging depth, in (mm) 8 (215)
Reach at ground, bucket level (JD 5045E, 5055E), in (mm) 84 (1870)
Reach at ground, bucket level (JD 5045D, 5055D), in (mm) 77 (1955)
Bucket dump angle at full height (JD 5045E, 5055E), degrees 41
Bucket dump angle at full height (JD 5045D, 5055D), degrees 44
Bucket rollback angle at ground (JD 5045E, 5055E), degrees 33
Bucket rollback angle at ground (JD 5045D, 5055D), degrees 35

Operating Data
Lift capacity to full height at pivot (JD 5045E, 5055E), lb (kg) 3133 (1421)
Lift capacity to full height at pivot (JD 5045D, 5055D), lb (kg) 2858 (1299)
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (JD 5045E, 5055E), lb (kg) 1956 (887)
Lift capacity to full height at 31.5" (0.8m) ahead of pivot (JD 5045D, 5055D), lb (kg) 1786 (812)
Boom breakout force at pivot (JD 5045E, 5055E), lb (kg) 5378 (2439)
Boom breakout force at pivot (JD 5045D, 5055D), lb (kg) 5353 (2433)
Boom breakout force at 31.5" (0.8m) ahead of pivot (JD 5045E, 5055E), lb (kg) 3604 (1634)
Boom breakout force at 31.5" (0.8m) ahead of pivot (JD 5045D, 5055D), lb (kg) 3593 (1633)
