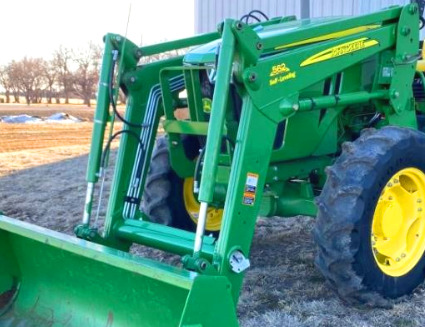

John Deere 562 Front End Loader
The
John Deere 562 mechanical self leveling loader is used for John Deere 6095B,
6110B, 6135B tractors. The loader has double acting lift and bucket hydraulic
cylinders.
The loader has a max lift height of 136 in (3448 mm) at pin and
clearance with bucket dumped of 95 in (2412 mm). The lift capacity is
rated at 2251 lbs (1021 kg) to max height, and boom breakout force is
4254 lbs (1930 kg). The boom raising time is 3.4 seconds from ground
line to max height, and bucket dumping time is 1.3 sec.
The John Deere 562 front-end loader is compatible with the following
buckets: a 73" (1850 mm) heavy-duty bucket material with a heaped
capacity of 22.5 cu.ft (0.64 m3), or 85" (2150 mm) heavy-duty material
bucket with a heaped capacity of 25.8 cu.ft (0.74 m3).
| Tractor models |
John Deere 6095B, 6110B, 6135B |
| Front tires |
12.4R24 |
| Rear tires |
16.9R34 |
| Pump capacity |
60 L/min (16 gal/min) |
| Rated pressure |
200 bar (2900 psi) |
| Loader model |
John Deere 562 MSL |
| Leveling configuration |
Mechanical Self Leveling |
| Weight |
950 kg (2090 lb) |
| 73" Heavy-Duty Materials Bucket |
| Width |
1850 mm (73 in) |
| Struck capacity |
0.52 m3 (18.1 cu.ft) |
| Heaped capacity |
0.64 m3 (22.5 cu.ft) |
| Weight |
248 kg (545 lb) |
| 85" Heavy-Duty Material Bucket |
| Width |
2150 mm (85 in) |
| Struck capacity |
0.59 m3 (20.9 cu.ft) |
| Heaped capacity |
0.74 m3 (25.8 cu.ft) |
| Weight |
275 kg (605 lb) |
| Maximum lift height |
3448 mm (136 in) |
| Clearance at full height, bucket level |
3254 mm (128 in) |
| Clearance at full height, bucket dumped |
2412 mm (95 in) |
| Digging depth |
93 mm (4 in) |
| Reach at maximum height |
973 mm (38 in) |
| Reach at ground, bucket level |
2328 mm (92 in) |
| Bucket dump angle at full height |
72 deg |
| Bucket rollback angle at ground |
39 deg |
| Bucket dump angle at ground |
92 deg |
| Lift capacity to full height at pivot |
1021 kg (2251 lb) |
| Lift capacity to full height at 31.5" (0.8m) ahead of pivot |
1063 kg (2344 lb) |
| Lift capacity to 59" (1.5m) height at pivot |
1444 kg (3184 lb) |
| Boom breakout force at pivot |
1930 kg (4254 lb) |
| Boom breakout force at 31.5" (0.8m) ahead of pivot |
1600 kg (3527 lb) |
| Loader raise, sec |
3,4 |
| Loader lower, sec |
2,0 |
| Bucket dump, sec |
1,3 |
| Bucket rollback, sec |
1,9 |
