John Deere 563 Front End Loader
The

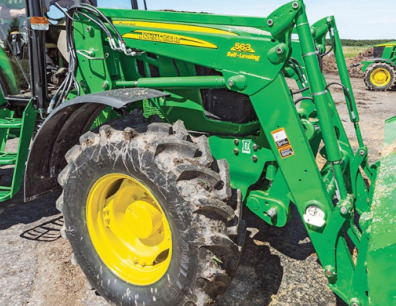

John Deere 563 MSL front end loader is available for John Deere 6110B, 6135B
tractors. The front end loader has double acting bucket and lifting hydraulic
cylinders.
The loader has a lifting capacity (at bucket pin) of 3008 lbs (1364 kg)
to 135" (3438 mm) full height and bucket's breakout force of 5679 lbs
(2576 kg). The clearance with a bucket dumped is 95" (2401 mm) at max
dump angle of 73 degrees. The raising time is 4.2 seconds from ground
line to max height, and bucket dumping time is 3.1 sec.
The John Deere 563 loader can be equipped with the following buckets: a
73" (1850 mm) heavy-duty material bucket with a heaped capacity of 22.5
cu.ft (0.64 m3), or 85" (2150 mm) heavy-duty material bucket with a
heaped capacity of 25.8 cu.ft (0.74 m3).
| Tractor models |
John Deere 6110B, 6135B |
| Front tires |
14.9R24 |
| Rear tires |
18.4R38 |
| Pump capacity |
69.6 L/min (18 gal/min) |
| Rated pressure |
200 bar (2900 psi) |
| Loader model |
JD 563 MSL |
| Leveling configuration |
Mechanical Self Leveling |
| Weight |
980 kg (2155 lb) |
| 73" Heavy-Duty Materials Bucket |
| Width |
1850 mm (73 in) |
| Struck capacity |
0.52 m3 (18.1 cu.ft) |
| Heaped capacity |
0.64 m3 (22.5 cu.ft) |
| Weight |
248 kg (545 lb) |
| 85" Heavy-Duty Material Bucket |
| Width |
2150 mm (85 in) |
| Struck capacity |
0.59 m3 (20.9 cu.ft) |
| Heaped capacity |
0.74 m3 (25.8 cu.ft) |
| Weight |
275 kg (605 lb) |
| Maximum lift height |
3438 mm (135 in) |
| Clearance at full height, bucket level |
3243 mm (128 in) |
| Clearance at full height, bucket dumped |
2401 mm (95 in) |
| Digging depth |
104 mm (4 in) |
| Reach at maximum height |
836 mm (33 in) |
| Reach at ground, bucket level |
2223 mm (88 in) |
| Bucket dump angle at full height |
73 deg |
| Bucket rollback angle at ground |
39 deg |
| Bucket dump angle at ground |
92 deg |
| Lift capacity to full height at pivot |
1364 kg (3008 lbs) |
| Lift capacity to full height at 31.5" (0.8m) ahead of pivot |
1420 kg (3131 lbs) |
| Lift capacity to 59" (1.5m) height at pivot |
1907 kg (4205 lbs) |
| Boom breakout force at pivot |
2576 kg (5679 lbs) |
| Boom breakout force at 31.5" (0.8m) ahead of pivot |
2141 kg (4720 lbs) |
| Loader raise, sec |
4,2 |
| Loader lower, sec |
2,8 |
| Bucket dump, sec |
3,1 |
| Bucket rollback, sec |
1,9 |
