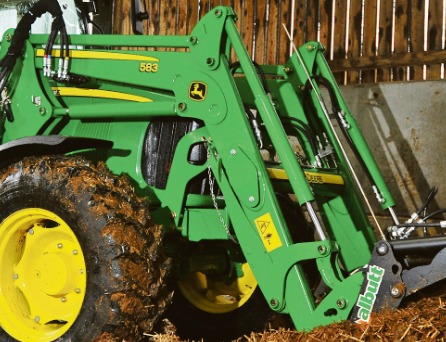

John Deere 583 Front End Loader

The John Deere 583 NSL or MSL loader is available for John Deere 1750, 1850, 1950 tractors. The loader hydraulic system includes double-acting boom and bucket hydraulic cylinders.

The loader’s maximum lift height is 145.3" (3690 mm) at pin, and bucket dump clearance is 107.5" (2730 mm). The lift capacity is 3887 lbs (1763 kg) to maximum lift height at 31" (800 mm) ahead of pin, and breakout force is 3817 lbs (1735 kg) at 31" (800 mm) ahead of pin.

The John Deere 583 front-end loader is compatible with a 63" (1600 mm) standard material bucket with a heaped capacity of 20 cu.ft (0.57 m3), or 71" (1800 mm) standard material bucket with a heaped capacity of 24 cu.ft (0.67 m3).

Compatible Tractors
Tractor Model John Deere 1750, 1850, 1950
Front Tires 7.50x16
Rear Tires 16.9x30
Hydraulic Flow 44 lpm (11.5 gpm)
Maximum Pressure 190 bar (2755 psi)

Loader
Loader Model John Deere 583 NSL/MSL
Leveling Configuration Non Self-Leveling / Mechanical Self-Leveling
Weight (NSL) 442 kg (974 lbs)
Weight (MSL) 515 kg (1135 lbs)

63" Standard Material Bucket
Width 1600 mm (63 in)
Struck Capacity 0.48 m3 (16.8 cu.ft)
Heaped Capacity 0.57 m3 (20 cu.ft)
Weight 166 kg (365 lbs)

71" Standard Materials Bucket
Width 1800 mm (71 in)
Struck Capacity 0.55 m3 (19.3 cu.ft)
Heaped Capacity 0.67 m3 (24 cu.ft)
Weight 198 kg (436 lbs)


Loader Dimensions
Maximum Lift Height at Pivot Pin (NSL) 3640 mm (143.3")
Maximum Lift Height at Pivot Pin (MSL) 3690 mm (145.3")
Clearance under Bucket Level (NSL) 3420 mm (134.6")
Clearance under Bucket Level (MSL) 3470 mm (136.6")
Clearance with Bucket Dumped (NSL) 2670 mm (105.1")
Clearance with Bucket Dumped (MSL) 2730 mm (107.5")
Digging Depth (NSL) 32 mm (1.3")
Digging Depth (MSL) 43 mm (1.7")
Reach at Maximum Lift Height, Bucket Dumped (NSL) 198 mm (7.8")
Reach at Maximum Lift Height, Bucket Dumped (MSL) 266 mm (10.5")
Reach with Bucket on Ground, Bucket Leveled 2120 mm (83.5")
Maximum Dump Angle (NSL) 71 deg
Maximum Dump Angle (MSL) 65 deg
Rollback Angle (NSL) 38 deg
Rollback Angle (MSL) 34 deg

Operating Data
Lift Capacity to Maximum Height at 31.5" (0.8m) ahead of Pivot Point (NSL) 1237 kg (2727 lbs)
Lift Capacity to Maximum Height at 31.5" (0.8m) ahead of Pivot Point (MSL) 1763 kg (3887 lbs)
Breakout Force at 31.5" (0.8m) ahead of Pivot Point (NSL) 1490 kg (3278 lbs)
Breakout Force at 31.5" (0.8m) ahead of Pivot Point (MSL) 1735 kg (3817 lbs)
