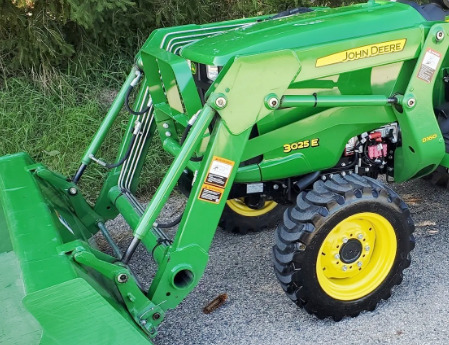

John Deere D160 Front End Loader

The John Deere D160 non self-levelling front-end loader is fitted to John Deere 3032E, 3036E, 3038E tractors. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders.

The loader has a lifting capacity (at pin) of 1186 lbs (539 kg) to maximum height of 84 in (2140 mm), and boom breakout force is 1704 lbs (775 kg). A full dump clearance with a 44-degree maximum dump angle is 63 in (1596 mm).

The estimated cycle times are 3.3 seconds raising to full height, and 1.8 seconds full bucket dumping. The John Deere D160 loader is compatible with a 61" (1550 mm) standard material bucket with a heaped capacity of 12.8 cu.ft (0.36 m3).

Compatible Tractors
Tractor Models John Deere 3032E, 3036E, 3038E
Front Tires 25x8.50-14
Rear Tires 15.00-19.5
Wheel Base 1525 mm (60 in)
Hydraulic Flow 20 L/min (5 gpm)
Maximum Pressure 172 bar (2495 psi)

Loader
Loader Model John Deere D160
Leveling Configuration Non Self-Levelling
Weight 307 kg (676 lbs)

Standard Material Bucket
Width 1550 mm (61 in)
Struck Capacity 0.30 m3 (10.5 cu.ft)
Heaped Capacity 0.36 m3 (12.8 cu.ft)
Weight 93 kg (205 lbs)

Loader Dimensions
Lift Height (Maximum) to Pivot Pin 2140 mm (84 in)
Clearance, Bucket Level 1979 mm (78 in)
Clearance, Bucket Dumped 1596 mm (63 in)
Overall Length 2893 mm (114 in)
Digging Depth 131 mm (5 in)
Reach at Maximum Lift Height with Bucket Dumped 603 mm (24 in)
Reach, Bucket on Ground with Bucket Leveled 1369 mm (54 in)
Max Dump Angle at Full Height 44 deg
Max Dump Angle at Ground 122 deg
Rollback Angle 31 deg
Overall Height in carrying position 161 mm (6 in)


Operating Data
Lift Capacity to Maximum Height at Pivot Point 539 kg (1186 lbs)
Lift Capacity to Maximum Height at 19.7" (0.5m) forward of pivot point 384 kg (845 lbs)
Lift Capacity to 59" (1.5m) at pivot pin 588 kg (1294 lbs)
Lift Capacity to 59" (1.5m) at 19.7" (0.5m) forward of pivot pin 444 kg (977 lbs)
Breakout Force at Pivot Point 775 kg (1704 lbs)
Breakout Force at 19.7" (0.5m) forward of pivot point 547 kg (1204 lbs)
Bucket Rollback Force at maximum height 651 kg (1433 lbs)
Bucket Rollback Force at 59" (1.5m) lift height 823 kg (1814 lbs)
Bucket Rollback Force at Ground Level Line 646 kg (1422 lbs)

Cycle Times
Loader Raise Time 3,3 sec
Loader Lower Time 2,8 sec
Bucket Dump Time 1,8 sec
Bucket Rollback Time 1,9 sec
