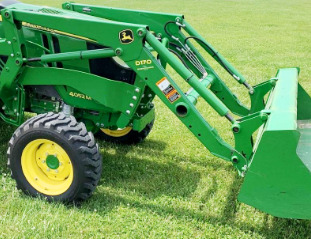

John Deere D170 Front End Loader

The John Deere D170 loader fits JD 4044M, 4044R, 4049M, 4049R, 4052M, and 4052R tractors. The D170 front end loader has double acting hydraulic lifting and bucket cylinders.

The standard material bucket has a width of 1850 mm (73 in), lenght of 585 mm (23 in), and weight of 108 kg (238 lbs). The John Deere D170 loader’s maximum lift height is 2850 mm (112 in) at pin, and clearance with bucket dumped is 2298 mm (90 in).

The lift capacity is 1087 kg (2391 lbs) to max height at pin, and breakout force (bucket on ground) is 1750 kg (3853 lbs). The rated cycle times are 4.26 seconds raising to full height, and 3.14 seconds maximum bucket dumping.

Compatible Tractors
Tractor Models John Deere 4044M, 4044R, 4049M, 4049R, 4052M, 4052R
Front Tires 10.0-16
Rear Tires 16,9-24
Wheel Base 1846 (73 in)
Hydraulic Flow 39 L/min (10 gpm)
Maximum Pressure 172 bar (2500 psi)

Loader
Loader Model John Deere D170 NSL
Leveling Configuration Non Self-Levelling
Weight 151 kg (335 lbs)

Standard Material Bucket
Width 1850 mm (73 in)
Length 585 mm (23 in)
Weight 108 kg (238 lbs)


Loader Dimensions
Maximum Lift Height at Pivot Pin 2850 mm (112 in)
Clearance, Bucket Level 2646 mm (104 in)
Clearance, Bucket Dumped 2298 mm (90 in)
Reach at Maximum Lift Height with Bucket Dumped 705 mm (28 in)
Reach, Bucket on Ground with Bucket Leveled 1672 mm (66 in)
Max Dump Angle 42 deg
Max Dump Angle at Ground 128 deg
Rollback Angle 29 deg
Rollback Angle at Full Height 110 deg
Overall Length 3522 (139 in)
Digging Depth 146 mm (6 in)
Overall Height in carrying position 1505 mm (59 in)

Operating Data
Lift Capacity to Maximum Height at Pivot Point 1087 kg (2391 lbs)
Lift Capacity to Maximum Height at 0.5m (19.7") ahead of Pivot Point 800 kg (1760 lbs)
Lift Capacity to 1.5m (59") Height at Pivot Point 1307 kg (2875 lbs)
Lift Capacity to 1.5m (59") Height at 0.5m (19.7") ahead of Pivot Point 1043 kg (2295 lbs)
Breakout Force at Pivot Point 1750 kg (3853 lbs)
Breakout Force at 0.5m (19.7") ahead of Pivot Point 1320 kg (2902 lbs)
Bucket Rollback Force at Maximum Height 1870 kg (4112 lbs)
Bucket Rollback Force at 1.5m (59") Lift Height 2360 kg (5191 lbs)
Bucket Rollback Force at Ground Level Line 1585 kg (3487 lbs)

Cycle Times
Loader Raise Time 4,26
Loader Lower Time 3,13
Bucket Dump Time 3,14
Bucket Rollback Time 2,42
