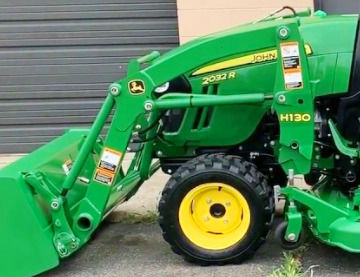

John Deere H130 Front End Loader

The John Deere H130 NSL loader is used for John Deere 2025R, 2032R, 2320, 2520, 2720 tractors. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders.

The loader’s maximum lift height is 78.9" (2005 mm) at pin, and reach at maximum height (bucket dumped) is 24.6" (625 mm). The lift capacity is 1023 lbs (465 kg) at full height (pivot pin), and breakout force (bucket on ground) is 2508 lbs (1140 kg).

Available buckets for the John Deere H130 front-end loader: a 49" (1250 mm) standard material bucket with a heaped capacity of 7.3 cu.ft (0.21 m3), or 53" (1345 mm) standard material bucket with a heaped capacity of 9.3 cu.ft (0.26 m3).

Compatible Tractors
Tractor models John Deere 2025R, 2032R, 2320, 2520, 2720
Front tires 23x8.5-12
Rear tires 31x12-16.5
Pump capacity, gpm (lpm) 3.0-5.0 (11.5-19.0)
Hydraulic pressure, bar (psi) 165 (2400)

Loader
Loader model John Deere H130 NSL
Leveling system Non self leveling
Weight, lbs (kg) 595 (270)

49" Standard Material Bucket
Width, in (mm) 49 (1250)
Struck capacity, cu.ft (cu.m) 6.0 (0.17)
Heaped capacity, cu.ft (cu.m) 7.3 (0.21)
Weight, lbs (kg) 155 (71)

53" Standard Material Bucket
Width, in (mm) 53 (1345)
Struck capacity, cu.ft (cu.m) 7.8 (0.22)
Heaped capacity, cu.ft (cu.m) 9.3 (0.26)
Weight, lbs (kg) 170 (78)


Loader Dimensions
Maximum lift height (JD 2025R, 2320), in (mm) 78.9 (2005)
Maximum lift height (JD 2032R, 2520, 2720), in (mm) 78.5 (1995)
Reach at maximum height (JD 2025R, 2320), in (mm) 24.6 (625)
Reach at maximum height (JD 2032R, 2520, 2720), in (mm) 25.8 (655)
Dump angle at full height, deg 38
Rollback angle at ground (JD 2025R, 2320), deg 24.5
Rollback angle at ground (JD 2032R, 2520, 2720), deg 25
Digging depth, in (mm) 9 (230)

Operating Data
Lift capacity to full height at pin (JD 2025R, 2320), lbs (kg) 1023 (465)
Lift capacity to full height at pin (JD 2032R, 2520, 2720), lbs (kg) 1027 (467)
Lift capacity to full height at 19.7" (0.5m) ahead of pin (JD 2025R, 2320), lbs (kg) 715 (325)
Lift capacity to full height at 19.7" (0.5m) ahead of pin (JD 2032R, 2520, 2720), lbs (kg) 717 (327)
Lift capacity to 59" (1.5m) height at pin (JD 2025R, 2320), lbs (kg) 1247 (567)
Lift capacity to 59" (1.5m) height at pin (JD 2032R, 2520, 2720), lbs (kg) 1245 (566)
Lift capacity to 59" (1.5m) height at 19.7" (0.5m) ahead of pin, lbs (kg) 915 (416)
Boom breakout force at pin (JD 2025R, 2320), lbs (kg) 2508 (1140)
Boom breakout force at pin (JD 2032R, 2520, 2720), lbs (kg) 2362 (1074)
Boom breakout force at 19.7" (0.5m) ahead of pin (JD 2025R, 2320), lbs (kg) 1615 (734)
Boom breakout force at 19.7" (0.5m) ahead of pin (JD 2032R, 2520, 2720), lbs (kg) 1604 (729)

Cycle Times
Raising time (JD 2025R, 2320), sec 4.7
Raising time (JD 2032R, 2520, 2720), sec 3.2
Lowering time (JD 2025R, 2320), sec 2.9
Lowering time (JD 2032R, 2520, 2720), sec 2.0
Dumping time (JD 2025R, 2320), sec 1.9
Dumping time (JD 2032R, 2520, 2720), sec 1.3
Rollback time (JD 2025R, 2320), sec 2.9
Rollback time (JD 2032R, 2520, 2720), sec 1.9
