John Deere H160 Front End Loader
The

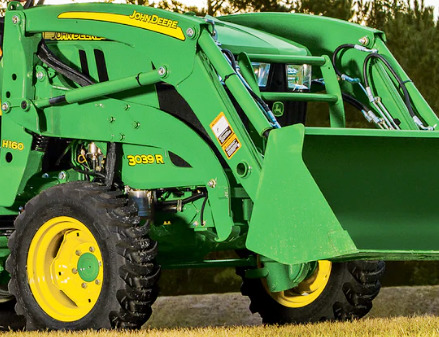

John Deere H160 non self-levelling front end loader is available for John Deere
3033R, 3038R, 3039R, 3045R, 3046R tractors. The loader has double acting bucket
and lifting hydraulic cylinders.
The loader’s maximum lift height is 90" (2284 mm) at pin, and clearance
with bucket dumped is 69" (1743 mm). The lifting capacity is 1360 lbs
(617 kg) to max height at pin, and breakout force with bucket on ground
is 2855 lbs (1298 kg).
The rated cycle times are 2.8 seconds lifting to full height, and 2.9
seconds maximum bucket dumping. The John Deere H160 loader is equipped
with a 61" (1550 mm) standard material bucket with a heaped capacity of
12.8 cu.ft (0.36 m3).
| Tractor Models |
John Deere 3033R, 3038R, 3039R, 3045R, 3046R |
| Front Tires |
7.00x14 |
| Rear Tires |
11.2x24 |
| Wheel Base |
1727 mm (68 in) |
| Hydraulic Flow |
32.5 L/min (8.6 gpm) |
| Maximum Pressure |
172 bar (2500 psi) |
| Loader model |
John Deere H160 NSL |
| Leveling configuration |
Non Self-Levelling |
| Weight |
258 kg (570 lbs) |
| Width |
1550 mm (61 in) |
| Struck capacity |
0.30 m3 (10.5 cu.ft) |
| Heaped capacity |
0.36 m3 (12.8 cu.ft) |
| Weight |
95 kg (207 lbs) |
| Lift Height (Maximum) to Pivot Pin |
2284 mm (90 in) |
| Clearance under Bucket Level |
2123 mm (84 in) |
| Clearance with Bucket Dumped |
1743 mm (69 in) |
| Overall Length |
3108 mm (122 in) |
| Digging Depth |
76 mm (3 in) |
| Reach at Maximum Lift Height (Bucket Dumped) |
773 mm (30 in) |
| Reach with Bucket on Ground |
1381 mm (54 in) |
| Max Dump Angle |
43 deg |
| Max Dump Angle at Ground |
121 deg |
| Rollback Angle |
25 deg |
| Rollback Angle at Full Height |
103 deg |
| Lift Capacity to Full Height at Pivot Pin |
617 kg (1360 lbs) |
| Lift Capacity to Full Height at 0.5m (19.7") forward of Pivot Pin |
453 kg (1000 lbs) |
| Lift Capacity to 1.5m (59") Height at Pivot Pin |
771 kg (1700 lbs) |
| Lift Capacity to 1.5m (59") Height at 0.5m (19.7") forward of Pivot Pin |
595 kg (1312 lbs) |
| Breakout Force at Pivot Pin |
1298 kg (2855 lbs) |
| Breakout Force at 0.5m (19.7") forward of Pivot Pin |
924 kg (2032 lbs) |
| Bucket Rollback Force at Full Height |
1208 kg (2657 lbs) |
| Bucket Rollback Force at 1.5m (59") Lift Height |
1521 kg (3347 lbs) |
| Bucket Rollback Force at Ground Level Line |
1191 kg (2619 lbs) |
| Loader Raise Time, seconds |
2.8 |
| Loader Lower Time, seconds |
1.7 |
| Bucket Dump Time, seconds |
2.9 |
| Bucket Rollback Time, seconds |
1.7 |
