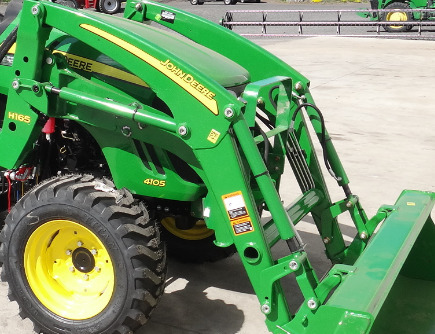

John Deere H165 Front End Loader

The John Deere H165 NSL loader is used for John Deere 3120, 3320, 3520, 3720, 4005, and 4105 tractors. The front end loader is equipped with double acting lift and bucket hydraulic cylinders.

The front end loader has a lifting capacity (at pivot pin) of 1598 lbs (725 kg) to 102" (2593 mm) full height, and bucket's breakout force of 3327 lbs (1512 kg). The bucket dump clearance is 80" (2024 mm) at maximum dump angle of 41 degrees.

The estimated cycle times are 3.6 seconds raising to full height, and 2.9 seconds to full bucket dump. The John Deere H165 front end loader is compatible with a 61" (1550 mm) standard material bucket with a heaped capacity of 12.8 cu.ft (0.36 m3).

Compatible Tractors
Tractor models John Deere 3120, 3320, 3520, 3720, 4005, 4105
Front Tires 7.00x14
Rear Tires 11.2x24
Hydraulic Flow 22.0-32.5 L/min (5.8-8.6 gpm)
Maximum Pressure 172 bar (2500 psi)

Loader
Loader Model John Deere H165
Leveling Configuration Non Self-Levelling
Weight 290 kg (638 lbs)

Standard Material Bucket
Width 1550 mm (61 in)
Struck Capacity 0.30 m3 (10.5 cu.ft)
Heaped Capacity 0.36 m3 (12.8 cu.ft)
Weight 93 kg (205 lbs)

Loader Dimensions
Maximum Lift Height to Pivot Pin (JD 3120-3720) 2593 mm (102 in)
Maximum Lift Height to Pivot Pin (JD 4005, 4105) 2616 mm (103 in)
Clearance, Bucket Level (JD 3120-3720) 2388 mm (94 in)
Clearance, Bucket Level (JD 4005, 4105) 2411 mm (95 in)
Clearance, Bucket Dumped (JD 3120-3720) 2024 mm (80 in)
Clearance, Bucket Dumped (JD 4005, 4105) 2003 mm (79 in)
Digging Depth (JD 3120-3720) 143 mm (6 in)
Digging Depth (JD 4005, 4105) 121 mm (5 in)
Reach at Maximum Lift Height with Bucket Dumped (JD 3120-3720) 562 mm (22 in)
Reach at Maximum Lift Height with Bucket Dumped (JD 4005, 4105) 766 mm (30 in)
Max Dump Angle (JD 3120-3720) 41 deg
Max Dump Angle (JD 4005, 4105) 49 deg
Rollback Angle (JD 3120-3720) 31 deg
Rollback Angle (JD 4005, 4105) 24 deg
Reach, Bucket on Ground with Bucket Leveled (JD 3120-3720) 1500 mm (59 in)
Reach, Bucket on Ground with Bucket Leveled (JD 4005, 4105) 1295 mm (51 in)

Operating Data
Lift Capacity to Max Height at Pivot Point (JD 3120-3720) 725 kg (1598 lbs)
Lift Capacity to Max Height at Pivot Point (JD 4005, 4105) 633 kg (1393 lbs)
Lift Capacity to Max Height at 0.5m (19.7") forward of Pivot Point (JD 3120-3720) 509 kg (1122 lbs)
Lift Capacity to Max Height at 0.5m (19.7") forward of Pivot Point (JD 4005, 4105) 457 kg (1005 lbs)
Breakout Force at Pivot Point (JD 3120-3720) 1512 kg (3327 lbs)
Breakout Force at Pivot Point (JD 4005, 4105) 1713 kg (3769 lbs)
Breakout Force at 0.5m (19.7") forward of Pivot Point (JD 3120-3720) 1100 kg (2417 lbs)
Breakout Force at 0.5m (19.7") forward of Pivot Point (JD 4005, 4105) 1211 kg (2665 lbs)
Bucket Rollback Force at Max Height (JD 3120-3720) 812 kg (1787 lbs)
Bucket Rollback Force at Max Height (JD 4005, 4105) 884 kg (1944 lbs)
Bucket Rollback Force at Ground Level Line (JD 3120-3720) 1403 kg (3087 lbs)
Bucket Rollback Force at Ground Level Line (JD 4005, 4105) 1338 kg (2944 lbs)

Cycle Times
Loader Raise Time (JD 3120-3720) 3,6 sec
Loader Raise Time (JD 4005, 4105) 5,3 sec
Loader Lower Time (JD 3120-3720) 2,1 sec
Loader Lower Time (JD 4005, 4105) 3,1 sec
Bucket Dump Time (JD 3120-3720) 2,9 sec
Bucket Dump Time (JD 4005, 4105) 5,5 sec
Bucket Rollback Time (JD 3120-3720) 1,8 sec
Bucket Rollback Time (JD 4005, 4105) 3,2 sec
