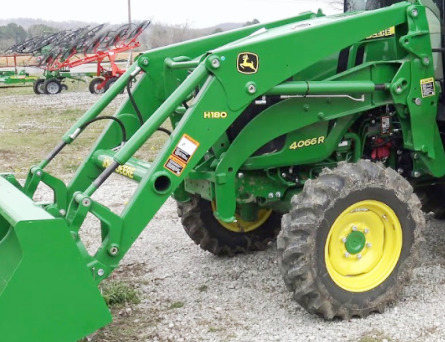

John Deere H180 Front End Loader
The
John Deere H180 front end loader is available for John Deere 4044R, 4049R,
4052R, 4066R tractors using MSL system, and John Deere 4120, 4320, 4520, 4720
tractors using NSL system.
The front end loader has double acting bucket and lift hydraulic
cylinders. The loader has a max lift height of 110.2" (2800 mm) at pin
and clearance with bucket dumped of 85.8" (2180 mm). The lift capacity
is rated at 2213 lbs (1006 kg) to full height, and breakout force is
3844 lbs (1747 kg). The estimated cycle times are 2.4 seconds lifting to
full height, and 2.1 seconds to full bucket dump.
The John Deere H180 loader is compatible with the following buckets: a
61" (1550 mm) standard material bucket with a heaped capacity of 12.8
cu.ft (0.36 m3), and 73" (1850 mm) standard material bucket with a
heaped capacity of 18.7 cu.ft (0.52 m3).
| Tractor Model (H180 MSL) |
John Deere 4044R, 4049R, 4052R, 4066R |
| Tractor Model (H180 NSL) |
John Deere 4120, 4320, 4520, 4720 |
| Front Tire Size |
8.00x16 |
| Front Tire Size |
13.6x28 |
| Rated Flow |
40-60 l/min (10.5-16 gal/min) |
| Maximum Pressure |
172 bar (2500 psi) |
| Loader Model |
John Deere H180 NSL/MSL |
| Leveling System |
Non Self-Leveling / Mechanical Self-Leveling |
| Weight |
302 kg (665 lbs) |
| 61" Standard Material Bucket |
| Width |
1550 mm (61") |
| Struck capacity |
0.30 m3 (10.5 cu.ft) |
| Heaped capacity |
0.36 m3 (12.8 cu.ft) |
| Weight |
95 kg (207 lbs) |
| 73" Standard Materials Bucket |
| Width |
1850 mm (73") |
| Struck capacity |
0.43 m3 (15.6 cu.ft) |
| Heaped capacity |
0.52 m3 (18.7 cu.ft) |
| Weight |
146 kg (322 lbs) |
| Maximum Lift Height at Pivot Pin (NSL) |
2770 mm (109") |
| Maximum Lift Height at Pivot Pin (MSL) |
2800 mm (110.2") |
| Clearance under Bucket Level (NSL) |
2560 mm (100.8") |
| Clearance under Bucket Level (MSL) |
2590 mm (102") |
| Clearance with Bucket Dumped (NSL) |
2160 mm (85") |
| Clearance with Bucket Dumped (MSL) |
2180 mm (85.8") |
| Digging Depth (NSL) |
160 mm (6.3") |
| Digging Depth (MSL) |
120 mm (4.7") |
| Reach at Maximum Lift Height, Bucket Dumped (NSL) |
770 mm (30.3") |
| Reach at Maximum Lift Height, Bucket Dumped (MSL) |
760 mm (30") |
| Reach with Bucket on Ground, Bucket Leveled (NSL) |
1740 mm (68.5") |
| Reach with Bucket on Ground, Bucket Leveled (MSL) |
1700 mm (67") |
| Maximum Dump Angle |
47 deg |
| Rollback Angle (NSL) |
44 deg |
| Rollback Angle (MSL) |
38 deg |
| Lift Capacity to Maximum Height at Pivot Point (NSL) |
1130 kg (2486 lbs) |
| Lift Capacity to Maximum Height at Pivot Point (MSL) |
1006 kg (2213 lbs) |
| Lift Capacity to Maximum Height at 19.7" (0.5m) ahead of Pivot Point (NSL) |
839 kg (1846 lbs) |
| Lift Capacity to Maximum Height at 19.7" (0.5m) ahead of Pivot Point (MSL) |
1010 kg (2222 lbs) |
| Lift Capacity to 59" (1.5m) Height at Pivot Point (NSL) |
1344 kg (2957 lbs) |
| Lift Capacity to 59" (1.5m) Height at Pivot Point (MSL) |
1263 kg (2779 lbs) |
| Lift Capacity to 59" (1.5m) Height at 19.7" (0.5m) ahead of Pivot Point (NSL) |
1072 kg (2358 lbs) |
| Lift Capacity to 59" (1.5m) Height at 19.7" (0.5m) ahead of Pivot Point (MSL) |
1201 kg (2642 lbs) |
| Breakout Force at Pivot Point (NSL) |
1788 kg (3934 lbs) |
| Breakout Force at Pivot Point (MSL) |
1747 kg (3844 lbs) |
| Breakout Force at 19.7" (0.5m) ahead of Pivot Point (NSL) |
1354 kg (2979 lbs) |
| Breakout Force at 19.7" (0.5m) ahead of Pivot Point (MSL) |
1521 kg (3346 lbs) |
| Bucket Rollback Force at Maximum Height (NSL) |
922 kg (2027 lbs) |
| Bucket Rollback Force at Maximum Height (MSL) |
1586 kg (3489 lbs) |
| Bucket Rollback Force at 59" (1.5m) Lift Height (NSL) |
1454 kg (3198 lbs) |
| Bucket Rollback Force at 59" (1.5m) Lift Height (MSL) |
2255 kg (4960 lbs) |
| Bucket Rollback Force at Ground Level Line (NSL) |
1536 kg (3379 lbs) |
| Bucket Rollback Force at Ground Level Line (MSL) |
2106 kg (4633 lbs) |
| Loader Raise Time |
2.4 seconds |
| Loader Lower Time |
1.6 seconds |
| Bucket Dump Time |
2.1 seconds |
| Bucket Rollback Time |
1.5 seconds |
