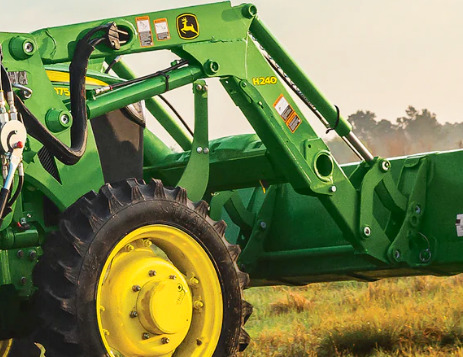

John Deere H240 Front End Loader

The John Deere H240 NSL or MSL loader fits John Deere 5045E, 5065E, 5075E, 5100E tractors. The loader has double acting hydraulic boom and bucket cylinders. The loader’s max lift height is 133" (3370 mm) at pin, and clearance with bucket dumped is 100" (2545 mm).

The lift capacity is 3550 lbs (1610 kg) to maximum lift height at pin, and boom breakout force is 4730 lbs (2150 kg). The boom raising time is 3.6 seconds from ground level to full height, and bucket dump time is 2.9 seconds.

The John Deere H240 front-end loader can be equipped with the following buckets: a 73" (1850 mm) standard material bucket with a heaped capacity of 18.7 cu.ft (0.52 m3), 79" (2000 mm) standard material bucket with a heaped capacity of 25.2 cu.ft (0.72 m3), or 87" (2200 mm) standard material bucket with a heaped capacity of 27.7 cu.ft (0.79 m3).

Compatible Tractors
Tractor models John Deere 5045E, 5065E, 5075E, 5100E
Front tires 12.4R24
Rear tires 18.4R30
Pump capacity, gpm (lpm) 11.4 (43.0)
Hydraulic pressure, bar (psi) 195 (2830)

Loader
Loader model John Deere H240 NSL/MSL
Leveling system Non Self Leveling / Mechanical Self Leveling
Weight, lb (kg) 1970 (895)

73" Standard Material Bucket
Width, in (mm) 73 (1850)
Struck capacity, ft3 (m3) 18.9 (0.54)
Heaped capacity, ft3 (m3) 23.5 (0.67)
Weight, lb (kg) 519 (236)

79" Standard Material Bucket
Width, in (mm) 79 (2000)
Struck capacity, ft3 (m3) 20.3 (0.58)
Heaped capacity, ft3 (m3) 25.2 (0.72)
Weight, lb (kg) 550 (250)

87" Standard Material Bucket
Width, in (mm) 87 (2200)
Struck capacity, ft3 (m3) 22.4 (0.64)
Heaped capacity, ft3 (m3) 27.7 (0.79)
Weight, lb (kg) 585 (266)


Loader Dimensions
Maximum lift height at pivot pin (NSL), in (mm) 133 (3370)
Maximum lift height at pivot pin (MSL), in (mm) 132 (3345)
Maximum lift height under level bucket (NSL), in (mm) 125 (3170)
Maximum lift height under level bucket (MSL), in (mm) 124 (3145)
Clearance with bucket dumped (NSL), in (mm) 100 (2545)
Clearance with bucket dumped (MSL), in (mm) 99 (2520)
Reach at maximum lift height (NSL), in (mm) 31 (785)
Reach at maximum lift height (MSL), in (mm) 33 (840)
Reach with bucket on ground level (NSL), in (mm) 85 (2150)
Reach with bucket on ground level (MSL), in (mm) 86 (2175)
Maximum dump angle, degrees 54
Maximum rollback angle (NSL), degrees 45
Maximum rollback angle (MSL), degrees 43
Digging depth (NSL), in (mm) 2.1 (51)
Digging depth (MSL), in (mm) 3.7 (93)

Operating Data
Lift Capacity to maximum height at pivot pin (NSL), lbs (kg) 3550 (1610)
Lift Capacity to maximum height at pivot pin (MSL), lbs (kg) 2820 (1280)
Lift Capacity to max. height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 2370 (1075)
Lift Capacity to max. height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 2605 (1180)
Lift Capacity to 59" (1.5m) height at pivot pin (NSL), lbs (kg) 4095 (1860)
Lift Capacity to 59" (1.5m) height at pivot pin (MSL), lbs (kg) 3550 (1610)
Lift Capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 3015 (1365)
Lift Capacity to 59" (1.5m) height at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 3490 (1585)
Breakout force at pivot pin (NSL), lbs (kg) 4730 (2150)
Breakout force at pivot pin (MSL), lbs (kg) 4795 (2180)
Breakout force at 31.5" (0.8m) forward of pivot pin (NSL), lbs (kg) 3235 (1470)
Breakout force at 31.5" (0.8m) forward of pivot pin (MSL), lbs (kg) 4050 (1840)
Bucket rollback force at ground level (NSL), lbs (kg) 5010 (2275)
Bucket rollback force at ground level (MSL), lbs (kg) 6740 (3065)

Cycle Times
Raising time to full height 3.6 sec.
Lowering time 2.4 sec.
Bucket dumping time 2.9 sec
Bucket rollback time 2.2 sec.
