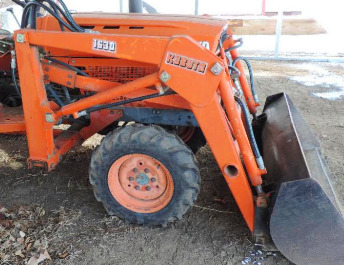

Kubota B1630 Front End Loader

The Kubota B1630 loader is used for Kubota B7200 tractor. The loader is equipped with double acting hydraulic lift and bucket cylinders. The loader’s max lift height is 1710 mm (67.7 inches) at pin and clearance with bucket dumped is 1300 mm (51.5 inches).

The lift capacity is 231 kg (510 lbs) at full height (pivot pin), and breakout force (bucket on ground) is 355 kg (780 lbs). The raising cycle time is 3.7 seconds from ground line to max height, and bucket dumping time is 1.9 sec. The Kubota B1630 front-end loader is compatible with a 48" (1220 mm) standard material bucket with a heaped capacity of 5.8 cu.ft (0.16 m3).

Compatible Tractors
Tractor model Kubota B7200
Wheel base, mm (in) 1450 (57)
Front tires 5,00-10
Rear tires 9,5-16
Rated flow, lpm (gpm) 14.0 (3.1)
Maximum pressure, kg/cm2 (psi) 101.7 (1450)

Loader
Loader model Kubota B1630
Boom cylinder bore, mm (in) 38.1 (1.5)
Boom cylinder stroke, mm (in) 406 (12.1)
Bucket cylinder bore, mm (in) 38.1 (1.5)
Bucket cylinder stroke, mm (in) 406 (13.0)
Net weight, kg (lbs) 175 (387)

Standard Material Bucket
Width, mm (in) 1220 (48.0)
Height, mm (in) 470 (18.5)
Length, mm (in) 480 (18.9)
Capacity (Struck), m3 (cu.ft.) 0.14 (4.8)
Capacity (Heaped), m3 (cu.ft.) 0.16 (5.8)
Weight, kg (lbs) 44 (97)


Loader Dimensions
Max. lift height (To bucket pivot pin), mm (in) 1710 (67.7)
Clearance with bucket dumped, mm (in) 1300 (51.5)
Reach at max. lift height (Dumping reach), mm (in) 510 (20.3)
Max. dump angle, deg 46
Reach with bucket on ground, mm (in) 1220 (48.3)
Bucket rollback angle, deg 28

Operating Data
Lift capacity (Bucket pivot pin, max. height), kg (lbs) 231 (510)
Breakout force (Bucket pivot pin), kg (lbs) 355 (780)

Cycle Times
Raising time 3.7 sec.
Lowering time 3.7 sec.
Bucket dumping time 1.9 sec.
Bucket rollback time 1.7 sec.
Power down time 2.1 sec.
