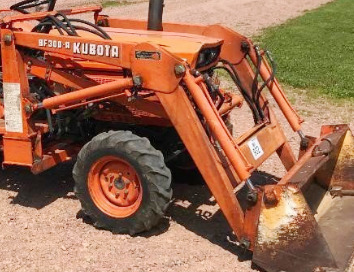

Kubota BF300 Front End Loader

The Kubota BF300 non self leveling loader is fitted to Kubota B8200 tractor. The front end loader has double acting hydraulic boom and bucket cylinders. The loader has a lift capacity (at pivot pin) of 705 lbs (320 kg) to a 79.1" (2000 mm) max height and breakout force of 1145 lbs (520 kg).

A full dump clearance with a 42-degree maximum dump angle is 64.4" (1630 mm). The Kubota BF300 front end loader is compatible with the following buckets: a 50" (1270 mm) standard material bucket with a heaped capacity of 8.1 cu.ft (0.23 m3), or 60" (1520 mm) standard material bucket with a heaped capacity of 9.9 cu.ft (0.28 m3).

Compatible Tractors
Tractor Model Kubota B8200
Front Tire Size 24x8.5-12
Rear Tire Size 13.6x16
Pump Flow, lpm (gpm) 6.5 (24.5)
Hydraulic Pressure, bar (psi) 118 (1715)

Loader
Loader Model Kubota BF300
Leveling System Non self leveling
Weight, kg (lbs) 200 (440)

50" Standard Material Bucket
Width, mm (in) 1270 (50.0)
Capacity (Struck), m3 (cu.ft.) 0.19 (6.7)
Capacity (Heaped), m3 (cu.ft.) 0.23 (8.1)
Weight, kg (lbs) 70 (154)

60" Standard Material Bucket
Width, mm (in) 1520 (60.0)
Capacity (Struck), m3 (cu.ft.) 0.23 (8.1)
Capacity (Heaped), m3 (cu.ft.) 0.28 (9.9)
Weight, kg (lbs) 85 (187)


Loader Dimensions
Maximum Lifting Height at Pin, mm (in) 2000 (79.1)
Clearance with Bucket Dumped, mm (in) 1630 (64.4)
Reach at Maximum Height, mm (in) 450 (17.9)
Maximum Dump Angle, deg 42
Reach with Bucket on Ground, mm (in) 1200 (47.4)
Bucket Rollback Angle, deg 23
Digging Depth, mm (in) 77 (3.1)

Operating Data
Lift Capacity to Full Height at Pin, kg (lbs) 320 (705)
Breakout Force at Pin, kg (lbs) 520 (1145)
