Kubota BF350 Front End Loader

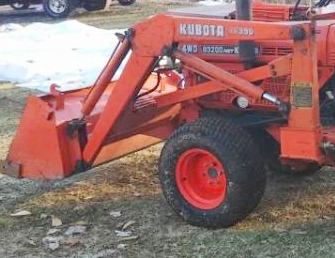

The Kubota BF350 NSL front end loader fits a Kubota B9200 tractor. The loader hydraulic system includes double-acting hydraulic bucket and lift cylinders. The loader has a lifting capacity (at bucket pin) of 838 lbs (380 kg) to full height of 84.4 inches (2140 mm) and breakout force (bucket on ground) of 1433 lbs (650 kg).

A full dump clearance with a 38-degree maximum dump angle is 66.1 inches (1670 mm). Compatible buckets for the Kubota BF350 loader: a 50" (1270 mm) standard material bucket with a heaped capacity of 8.1 cu.ft (0.23 m3), or 60" (1520 mm) standard material bucket with a heaped capacity of 9.9 cu.ft (0.28 m3).

Compatible Tractors
Tractor Model Kubota B9200
Front Tire Size 23x8.5-12
Rear Tire Size 13.6x16
Pump Flow, lpm (gpm) 7.0 (27.0)
Hydraulic Pressure, bar (psi) 133 (1930)

Loader
Loader Model Kubota BF350
Leveling System Non self leveling
Weight, kg (lbs) 250 (550)

50" Standard Material Bucket
Width, mm (in) 1270 (50.0)
Capacity (Struck), m3 (cu.ft.) 0.19 (6.7)
Capacity (Heaped), m3 (cu.ft.) 0.23 (8.1)
Weight, kg (lbs) 70 (154)

60" Standard Material Bucket
Width, mm (in) 1520 (60.0)
Capacity (Struck), m3 (cu.ft.) 0.23 (8.1)
Capacity (Heaped), m3 (cu.ft.) 0.28 (9.9)
Weight, kg (lbs) 85 (187)


Loader Dimensions
Maximum Lifting Height at Pin, mm (in) 2140 (84.4)
Clearance with Bucket Dumped, mm (in) 1670 (66.1)
Reach at Maximum Height, mm (in) 540 (21.5)
Maximum Dump Angle, deg 38
Reach with Bucket on Ground, mm (in) 1310 (51.8)
Bucket Rollback Angle, deg 25
Digging Depth, mm (in) 91 (3.5)

Operating Data
Lift Capacity to Full Height at Pin, kg (lbs) 380 (838)
Breakout Force at Pin, kg (lbs) 650 (1433)
