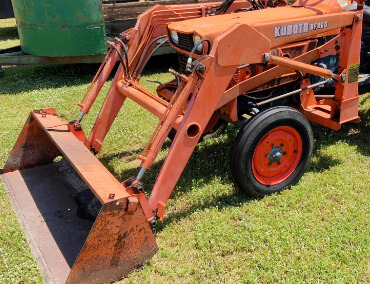

Kubota BF400 Front End Loader

The Kubota BF400 front end loader is designed for Kubota L235DT, L275DT tractors. The front end loader is equipped with double acting hydraulic bucket and lift cylinders. The loader has a maximum lift height (at pin) of 94.5" (2400 mm) for L275DT or 92.5" (2350 mm) for L235DT, and bucket dump clearance of 74.7" (1890 mm) for L275DT or 72.4" (1840 mm) for L235DT.

The lift capacity is rated at 816 lbs (370 kg) to max height, and breakout force is 1410 lbs (640 kg). The Kubota BF400 loader is equipped with a 60" (1520 mm) standard material bucket with a heaped capacity of 9.5 cu.ft (0.27 m3).

Compatible Tractors
Tractor Models Kubota L235DT, L275DT
Front Tires 7.00x16
Rear Tires 11.2x24
Hydraulic System Flow, gpm (lpm) 6.2 (23.5)
Hydraulic Pressure, bar (psi) 155 (2250)

Loader
Loader Model Kubota BF400
Lift Cylinder Bore, in (mm) 1.77 (45.0)
Lift Cylinder Stroke, in (mm) 17.7 (450)
Bucket Cylinder Bore, in (mm) 1.77 (45.0)
Bucket Cylinder Stroke, in (mm) 17.7 (450)
Weight, lbs (kg) 795 (360)

Standard Material Bucket
Width, in (mm) 60 (1525)
Depth, in (mm) 19.1 (470)
Height, in (mm) 17.7 (450)
Length, in (mm) 22.4 (570)
Capacity (Struck), cu.ft (m3) 7.5 (0.22)
Capacity (Heaped), cu.ft (m3) 9.5 (0.27)
Weight, lbs (kg) 176 (80)


Loader Dimensions
Maximum Lift Height to Pivot Pin (L275DT), in (mm) 94.5 (2400)
Maximum Lift Height to Pivot Pin (L235DT), in (mm) 92.5 (2350)
Clearance with Bucket Dumped (L275DT), in (mm) 74.7 (1890)
Clearance with Bucket Dumped (L235DT), in (mm) 72.4 (1840)
Reach at Maximum Lift Height, in (mm) 24 (610)
Maximum Dump Angle, degrees 38
Reach With Bucket On Ground (L275DT), in (mm) 58.7 (1490)
Reach With Bucket On Ground (L235DT), in (mm) 59.8 (1520)
Digging Depth (L275DT), in (mm) 7.9 (200)
Digging Depth (L235DT), in (mm) 9.4 (240)
Maximum Rollback Angle, degrees 24
Overall Height in Carry Position, in (mm) 51.6 (1310)

Operating Data
Lift Capacity to Max Height at Pivot Point, lbs (kg) 816 (370)
Lift Capacity to Max Height at 19.7" (0.5m) ahead of Pivot Point, lbs (kg) 585 (267)
Breakout Force at Bucket Pivot Point, lbs (kg) 1410 (640)
Breakout Force at 19.7" (0.5m) ahead of Pivot Point, lbs (kg) 1010 (460)
