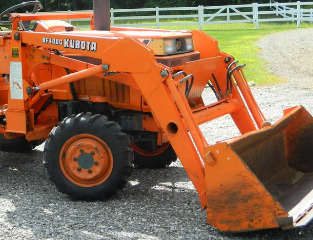

Kubota BF400G Front End Loader
The
Kubota BF400G loader fits Kubota L2250, L2550 tractors. The loader has double
acting lift and bucket hydraulic cylinders. The loader has a lifting capacity
(at pin) of 882 lbs (400 kg) to full height of 93.7" (2370 mm) and breakout
force (bucket on ground) of 1654 lbs (750 kg).
The clearance with a bucket dumped is 74.8" (1890 mm) at max dump angle
of 41 degrees. The Kubota BF400G front end loader is compatible with a
60" (1520 mm) standard material bucket with a heaped capacity of 9.5
cu.ft (0.27 m3).
| Tractor Models |
Kubota L2250, L2550 |
| Front Tires |
7.00x16 |
| Rear Tires |
11.2x24 |
| Hydraulic System Flow, gpm (lpm) |
6.7 (25.4) |
| Hydraulic Pressure, bar (psi) |
155 (2250) |
| Loader Model |
Kubota BF400G |
| Lift Cylinder Bore, in (mm) |
1.77 (45.0) |
| Lift Cylinder Stroke, in (mm) |
17.7 (450) |
| Bucket Cylinder Bore, in (mm) |
1.77 (45.0) |
| Bucket Cylinder Stroke, in (mm) |
17.7 (450) |
| Weight, lbs (kg) |
795 (360) |
| Width, in (mm) |
60 (1520) |
| Depth, in (mm) |
19.1 (470) |
| Height, in (mm) |
17.7 (450) |
| Length, in (mm) |
22.4 (570) |
| Capacity (Struck), cu.ft (m3) |
7.5 (0.22) |
| Capacity (Heaped), cu.ft (m3) |
9.5 (0.27) |
| Weight, lbs (kg) |
176 (80) |
| Maximum Lift Height to Pivot Pin, in (mm) |
93.7 (2370) |
| Clearance with Bucket Dumped, in (mm) |
74.8 (1890) |
| Reach at Maximum Lift Height, in (mm) |
25.8 (650) |
| Maximum Dump Angle, degrees |
41 |
| Reach With Bucket On Ground, in (mm) |
62 (1570) |
| Digging Depth, in (mm) |
7.5 (190) |
| Maximum Rollback Angle, degrees |
21 |
| Overall Height in Carry Position, in (mm) |
52.6 (1335) |
| Lift Capacity to Max Height at Pivot Point, lbs (kg) |
882 (400) |
| Lift Capacity to Max Height at 19.7" (0.5m) ahead of Pivot Point, lbs (kg) |
630 (285) |
| Breakout Force at Bucket Pivot Point, lbs (kg) |
1654 (750) |
| Breakout Force at 19.7" (0.5m) ahead of Pivot Point, lbs (kg) |
1180 (535) |
