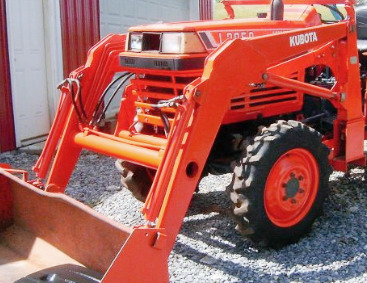

Kubota BF400S Front End Loader

The Kubota BF400S front-end loader is fitted to Kubota L2050 tractor. The front end loader has double acting lifting and bucket hydraulic cylinders. The loader has a lifting capacity (at bucket pin) of 882 lbs (400 kg) to a 92.1 inches (2330 mm) max height and boom breakout force of 1653 lbs (749 kg).

The bucket dump clearance is 72.4 inches (1830 mm) at maximum dump angle of 41 degrees. The Kubota BF400S loader is compatible with a 60" (1520 mm) standard material bucket with a heaped capacity of 9.5 cu.ft (0.27 m3).

Compatible Tractors
Tractor Models Kubota L2050
Front Tires 7.00x16
Rear Tires 11.2x24
Hydraulic System Flow, gpm (lpm) 6.2 (23.5)
Hydraulic Pressure, bar (psi) 155 (2250)

Loader
Loader Model Kubota BF400S
Lift Cylinder Bore, in (mm) 1.77 (45.0)
Lift Cylinder Stroke, in (mm) 17.7 (450)
Bucket Cylinder Bore, in (mm) 1.77 (45.0)
Bucket Cylinder Stroke, in (mm) 17.7 (450)
Weight, lbs (kg) 825 (375)

Standard Material Bucket
Width, in (mm) 60 (1525)
Depth, in (mm) 19.1 (470)
Height, in (mm) 17.7 (450)
Length, in (mm) 22.4 (570)
Capacity (Struck), cu.ft (m3) 7.5 (0.22)
Capacity (Heaped), cu.ft (m3) 9.5 (0.27)
Weight, lbs (kg) 176 (80)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 92.1 (2330)
Clearance with Bucket Dumped, in (mm) 72.4 (1830)
Reach at Maximum Lift Height, in (mm) 25.8 (650)
Maximum Dump Angle, degrees 41
Reach With Bucket On Ground, in (mm) 61 (1540)
Digging Depth, in (mm) 5.9 (150)
Maximum Rollback Angle, degrees 21
Overall Height in Carry Position, in (mm) 52.6 (1335)

Operating Data
Lift Capacity to Max Height at Pivot Point, lbs (kg) 882 (400)
Lift Capacity to Max Height at 19.7" (0.5m) ahead of Pivot Point, lbs (kg) 630 (285)
Breakout Force at Bucket Pivot Point, lbs (kg) 1653 (749)
Breakout Force at 19.7" (0.5m) ahead of Pivot Point, lbs (kg) 1180 (535)
