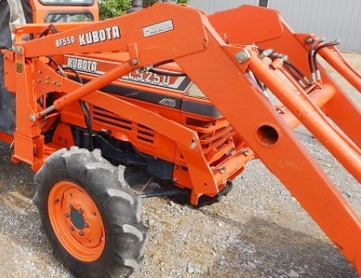

Kubota BF550 Front End Loader

The Kubota BF550 non self leveling front-end loader is designed to fit Kubota L3250 tractor. The loader has double acting bucket and lifting hydraulic cylinders. The front end loader has a lift capacity (at bucket pin) of 550 kg (1215 lbs) to full height of 2530 mm (99.8 inches) and breakout force of 950 kg (2095 lbs).

The bucket dump clearance with a 40-degree max dump angle is 2020 mm (79.9 inches). The Kubota BF550 loader is compatible with a 60" (1520 mm) standard material bucket with a heaped capacity of 10.3 cu.ft (0.29 m3).

Compatible Tractors
Tractor Model Kubota L3250
Front Tire Size 6.00x16
Rear Tire Size 13.6x26
Pump Flow, lpm (gpm) 7.8 (29.5)
Hydraulic Pressure, bar (psi) 157 (2275)

Loader
Loader Model Kubota BF550
Leveling System Non self leveling
Weight, kg (lbs) 450 (990)

Standard Material Bucket
Width, mm (in) 1520 (60.0)
Capacity (Struck), m3 (cu.ft.) 0.24 (8.5)
Capacity (Heaped), m3 (cu.ft.) 0.29 (10.3)
Weight, kg (lbs) 97 (214)


Loader Dimensions
Maximum Lifting Height at Pin, mm (in) 2530 (99.8)
Clearance with Bucket Dumped, mm (in) 2020 (79.9)
Reach at Maximum Height, mm (in) 680 (27.1)
Maximum Dump Angle, deg 40
Reach with Bucket on Ground, mm (in) 1680 (66.3)
Bucket Rollback Angle, deg 24
Digging Depth, mm (in) 115 (4.5)

Operating Data
Lift Capacity to Full Height at Pin, kg (lbs) 550 (1215)
Lift Capacity to Full Height at 19.7" (0.5m) ahead of Pin, kg (lbs) 390 (865)
Breakout Force at Pin, kg (lbs) 950 (2095)
Breakout Force at 19.7" (0.5m) ahead of Pin, kg (lbs) 680 (1490)
