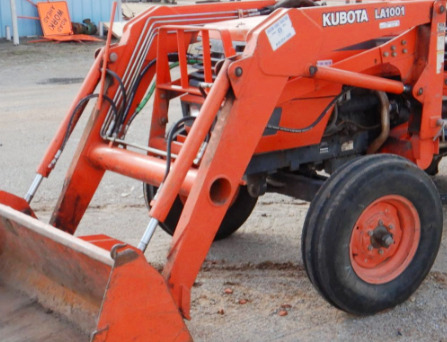

Kubota LA1001 Front End Loader

The Kubota LA1001 non self leveling loader is designed for Kubota M5400, M4700 tractors. The front end loader hydraulic system includes double-acting hydraulic boom and bucket cylinders. The front end loader has a lifting capacity (at pivot pin) of 2205 lbs (1000 kg) to a max height of 114 inches (2890 mm), and breakout force of 3330 lbs (1510 kg).

The clearance with a bucket dumped is 89 inches (2260 mm) at maximum dump angle of 39 degrees. The Kubota LA1001 front end loader is compatible with a 72" (1820 mm) standard material bucket with heaped capacity of 13.1 cu.ft (0.37 cu.m).

Compatible Tractors
Tractor Models Kubota M5400, M4700
Front Tires 9,5-22
Rear Tires 16,9-28
Hydraulic System Flow, gpm (lpm) 11.0 (41.6)

Loader
Loader model Kubota LA1001
Leveling system Non self leveling
Net weight (approximate), lb (kg) 1200 (545)

Bucket
Width, in (mm) 72 (1820)
Length, in (mm) 25.7 (652)
Height, in (mm) 22.4 (570)
Depth, in (mm) 21.5 (547)
Capacity (Struck), cu.ft (m3) 10.9 (0.31)
Capacity (Heaped), cu.ft (m3) 13.1 (0.37)
Weight, lbs (kg) 322 (146)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 114 (2890)
Clearance with Bucket Dumped, in (mm) 89 (2260)
Reach at Maximum Lift Height, in (mm) 35 (880)
Maximum Dump Angle, degrees 39
Reach with Bucket on Ground, in (mm) 71.3 (1810)
Maximum Rollback Angle, degrees 25

Operating Data
Lift Capacity to Max Height at Pivot Point, lbs (kg) 2205 (1000)
Max Breakout Force at Bucket Pivot Point, lbs (kg) 3330 (1510)
