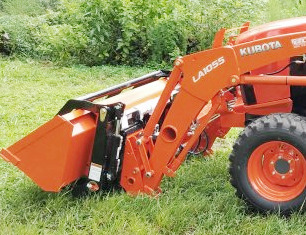

Kubota LA1055 Front End Loader

The Kubota LA1055 loader fits Kubota L4760, L5060, L5460, L6060 tractors. The loader has double-acting bucket and lift hydraulic cylinders. The Kubota LA1055 front-end loader has a max lift height of 112.7" (2863 mm) at pin and bucket dump clearance of 87.2" (2216 mm). The lift capacity is 2361 lbs (1071 kg) to max height at pin, and boom breakout force is 4074 lbs (1850 kg).

The rated cycle times are 4.4 seconds raising to maximum height and 1.9 seconds maximum bucket dumping. The Kubota LA1055 loader is equipped with a 72" (1830 mm) standard material bucket with a rated capacity of 0.45 m3 (16 cu.ft).

Compatible Tractors
Tractor Models Kubota L4760, L5060, L5460, L6060
Front Tires 9.50x16
Rear Tires 14.9x26
Rated flow, gpm/lpm 9.6 (37.0)
Maximum pressure, psi (MPa) 2630 (18.1)

Loader
Loader Model Kubota LA1055
Boom Cylinder Bore, in (mm) 2.36 (60.0)
Boom Cylinder Stroke, in (mm) 19.5 (496)
Bucket Cylinder Bore, in (mm) 2.17 (55.0)
Bucket Cylinder Stroke, in (mm) 18.5 (469)
Net Weight (approximate), lb (kg) 1411 (640)

Standard Material Bucket
Width, in (mm) 72 (1830)
Depth, in (mm) 23.9 (607)
Overall height, in (mm) 22.4 (570)
Length, in (mm) 27.2 (691)
Capacity (struck), cu.ft (m3) 12.7 (0.36)
Capacity (heaped), cu.ft (m3) 16.0 (0.45)
Weight, lb (kg) 397 (180)
Loader Dimensions
Max lift height to bucket pivot pin, in (mm) 112.7 (2863)
Max lift height under level bucket, in (mm) 104.8 (2662)
Clearance with bucket dumped, in (mm) 87.2 (2216)
Reach at max lift height, in (mm) 26.3 (667)
Max dump angle, degrees 46
Reach with bucket on ground, in (mm) 77.8 (1975)
Bucket rollback angle, degrees 42
Digging depth, in (mm) 6.9 (174)
Overall height in carrying position, in (mm) 57.0 (1447)

Operating Data
Lift capacity to max height at pivot point, lbs (kg) 2361 (1071)
Lift capacity to max height at 0.5m (19.5") from pivot point, lbs (kg) 1784 (809)
Lift capacity to 59" (1.5m) height at pivot point, lbs (kg) 2974 (1349)
Lift capacity to 59" (1.5m) height at 0.5m (19.5") from pivot point, lbs (kg) 2407 (1092)
Breakout force at pivot point, lbs (kg) 4074 (1850)
Breakout force at 0.5m (19.5") from pivot point, lbs (kg) 3171 (1440)
Rollback force at max height, lbs (kg) 2527 (1148)
Rollback force at ground level, lbs (kg) 4036 (1835)

Cycle Times
Raising time, second 4,4
Lowering time, second 3
Bucket dumping time, second 1,9
Bucket rollback time, second 2,4
