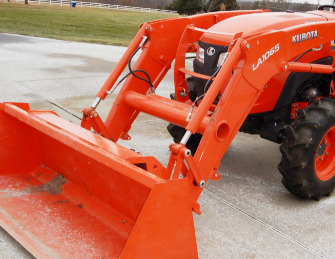

Kubota LA1065 Front End Loader

The Kubota LA1065 non self leveling loader is used for Kubota MX4800, MX5200, MX5800 tractors. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders. The Kubota LA1065 front end loader has a lifting capacity (at pivot pin) of 2275 lbs (1030 kg) to a maximum height of 111.2" (2825 mm) and bucket's breakout force of 3980 lbs (1800 kg).

The bucket dump clearance is 85.5" (2170 mm) at maximum dump angle of 46 degrees. The rated cycle times are 4.4 seconds lifting to maximum height and 1.9 seconds to full bucket dump. The Kubota LA1065 loader is compatible with a 72" (1830 mm) standard material bucket with a rated capacity of 0.37 m3 (13.1 cu.ft), and 72" (1830 mm) heavy-duty material bucket with a rated capacity of 0.38 m3 (13.3 cu.ft).

Compatible Tractors
Tractor Models Kubota MX4800, MX5200, MX5800
Front Tires 9.5x16
Rear Tires 14.9x26
Hydraulic System Flow, gpm (lpm) 9.5 (35.8)
Hydraulic Pressure, bar (psi) 180 (2630)

Loader
Loader Model Kubota LA1065
Leveling System Non self leveling
Net Weight (approximate), lb (kg) 1120 (510)

Standard Material Bucket
Width, in (mm) 72 (1830)
Depth, in (mm) 21.5 (247)
Height, in (mm) 22.4 (570)
Length, in (mm) 25.7 (652)
Capacity (Struck), cu.ft (m3) 10.9 (0.31)
Capacity (Heaped), cu.ft (m3) 13.1 (0.37)
Weight, lbs (kg) 320 (146)

Heavy-Duty Material Bucket
Width, in (mm) 72 (1830)
Depth, in (mm) 18.8 (477)
Height, in (mm) 23.9 (608)
Length, in (mm) 24.8 (630)
Capacity (Struck), cu.ft (m3) 10.9 (0.31)
Capacity (Heaped), cu.ft (m3) 13.3 (0.38)
Weight, lbs (kg) 360 (165)

Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 111.2 (2825)
Clearance with Bucket Dumped, in (mm) 85.5 (2170)
Reach at Maximum Lift Height, in (mm) 26.1 (660)
Maximum Dump Angle, degrees 46
Reach With Bucket On Ground, in (mm) 78.1 (1985)
Digging Depth, in (mm) 8.4 (215)
Maximum Rollback Angle, degrees 42
Overall Height in Carry Position, in (mm) 55.7 (1415)

Operating Data
Lift Capacity to Max Height at Pivot Point, lbs (kg) 2275 (1030)
Lift Capacity to Max Height at 0.5m (19.5") from Bucket Pivot Point, lbs (kg) 1690 (770)
Breakout Force at Bucket Pivot Point, lbs (kg) 3980 (1800)
Breakout Force at 0.5m (19.5") from Bucket Pivot Point, lbs (kg) 3100 (1410)

Cycle Times
Loader Raise, sec. 4,4
Loader Lower, sec. 3,3
Bucket Dump, sec. 1,9
Bucket Rollback, sec. 2,4
