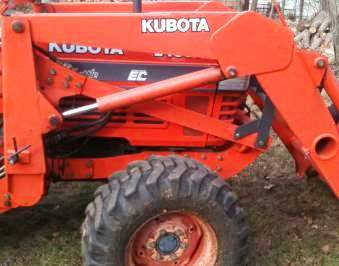

Kubota LA1150A Front-End Loader
The
Kubota LA1150A loader is available for 4-wheel drive Kubota L5450 utility
tractor. The Kubota LA1150A loader has double acting hydraulic lifting and
bucket cylinders. The loader’s maximum lift height is 112.1" (2840 mm) at pin
and clearance with bucket dumped is 86.3" (2190 mm). The lifting capacity is
2515 lbs (1140 kg) at maximum height (bucket pin), and breakout force is 3725
lbs (1690 kg) with bucket on ground.
The raising time is 4.1 sec from ground line to max height, and bucket dumping time is 2.2 sec. The Kubota LA1150A loader is compatible with a 72" (1830 mm) standard material bucket with a heaped capacity of 16 cu.ft (0.45 m3).
| Compatible Tractor Models |
Tractor Models .................... Kubota L5450
Front Tyre Size .................... 9.5x20
Rear Tyre Size .................... 14.9x28
Hydraulic Flow, gpm (lpm) .................... 13.0 (49.2)
Maximum Pressure, psi (bar) .................... 2500 (172)
| Loader |
Loader Model .................... Kubota LA1150A
Leveling System .................... Non-Self Leveling
Attachment Type .................... Pin-On
Lift Cylinder Bore, in (mm) .................... 2.5 (63)
Bucket Cylinder Bore, in (mm) .................... 2.5 (63)
Weight, lbs (kg) .................... 1500 (680)
| Standard Material Bucket |
Width, in (mm) .................... 72 (1830)
Depth, in (mm) .................... 23.9 (607)
Height, in (mm) .................... 22.4 (570)
Bucket Capacity (Struck), cu.ft (m3) .................... 12.7 (0.36)
Bucket Capacity (Heaped), cu.ft (m3) .................... 16.0 (0.45)
Weight, lbs (kg) .................... 397 (180)
| Loader Dimensions |
Maximum Lift Height at Pivot Pin, in (mm) .................... 112.1 (2840)
Clearance with Bucket Dumped, in (mm) .................... 86.3 (2190)
Digging Depth, in (mm) .................... 4.5 (113)
Reach at Maximum Lift Height, in (mm) .................... 29.5 (740)
Reach with Bucket on Ground, in (mm) .................... 70.3 (1780)
Maximum Dump Angle, deg .................... 42
Maximum Rollback Angle, deg .................... 25
| Operating Specifications |
Lift Capacity to Full Height at Pivot Pin, lbs (kg) .................... 2515 (1140)
Breakout Force at Pivot Pin, lbs (kg) .................... 3725 (1690)
| Cycle Times |
Loader Raise Time, sec .................... 4.1
Loader Lower Time, sec .................... 3.8
Bucket Dump Time, sec .................... 2.2
Bucket Rollback Time, sec .................... 1.9
