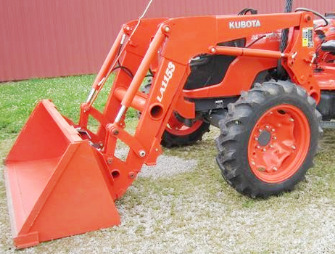

Kubota LA1153 Front End Loader
The
Kubota LA1153 non self leveling loader is compatible with Kubota M6040, M7040
tractors. The front end loader has double acting boom and bucket hydraulic
cylinders. The Kubota LA1153 loader has a lift capacity (at pivot pin) of 2480
lbs (1127 kg) to a maximum height of 132.7 in (3370 mm) and breakout force
(bucket on ground) of 3690 lbs (1672 kg).
A full dump clearance with a 43-degree maximum dump angle is 102.3 in
(2577 mm). The rated cycle times are 4.7 seconds raising to maximum
height, and 2.7 seconds full bucket dumping. The Kubota LA1153 loader is
equipped with the following buckets: a 72" (1830 mm) standard material
bucket with a rated capacity of 0.45 m3 (16 cu.ft), and 84" (2130 mm)
high volume bucket with a rated capacity of 0.75 m3 (26.5 cu.ft).
| Tractor models |
Kubota M6040, M7040 |
| Front tires |
9.5x24 |
| Rear tires |
16.9x30 |
| Rated flow, lpm (gpm) |
41.6 (11.0) |
| Loader Model |
Kubota LA1153 |
| Leveling System |
Non self leveling |
| Net Weight (approximate), lb (kg) |
1290 (585) |
| Bucket Type |
Quick attach |
| Width, in (mm) |
72 (1830) |
| Capacity (struck), cu.ft (m3) |
12.7 (0.36) |
| Capacity (heaped), cu.ft (m3) |
16.0 (0.45) |
| Weight, lb (kg) |
350 (160) |
| Type |
Quick attach |
| Width, in (mm) |
84 (2130) |
| Capacity (struck), cu.ft (m3) |
19.3 (0.55) |
| Capacity (heaped), cu.ft (m3) |
26.5 (0.75) |
| Weight, lb (kg) |
400 (182) |
| Maximum Lift Height at Pin (Height Position), in (mm) |
132.7 (3370) |
| Maximum Lift Height at Pin (Power Position), in (mm) |
118.1 (2977) |
| Clearance with Bucket Dumped (Height Position), in (mm) |
102.3 (2577) |
| Clearance with Bucket Dumped (Power Position), in (mm) |
86.2 (2172) |
| Reach at Maximum Height (Height Position), in (mm) |
14.2 (357) |
| Reach at Maximum Height (Power Position), in (mm) |
32.2 (811) |
| Maximum Dump Angle (Height Position), deg |
43 |
| Maximum Dump Angle (Power Position), deg |
60 |
| Reach with Bucket on Ground, in (mm) |
77.3 (1947) |
| Bucket Rollback Angle, deg |
43 |
| Digging Depth (Height Position), in (mm) |
5.3 (134) |
| Digging Depth (Power Position), in (mm) |
4.4 (111) |
| Overall Height in Carry Position, in (mm) |
62.4 (1573) |
| Lift Capacity to Full Height at Bucket Pivot Pin (Height Position), lbs (kg) |
2480 (1127) |
| Lift Capacity to Full Height at Bucket Pivot Pin (Power Position), lbs (kg) |
2940 (1336) |
| Lift Capacity to Full Height at Bucket Center (Height Position), lbs (kg) |
2320 (1055) |
| Lift Capacity to Full Height at Bucket Center (Power Position), lbs (kg) |
2530 (1150) |
| Breakout Force at Bucket Pivot Point, lbs (kg) |
3690 (1672) |
| Raising Time, second |
4,7 |
| Lowering Time, second |
3,5 |
| Bucket Rollback Time, second |
3,1 |
| Bucket Dumping Time, second |
2,7 |
