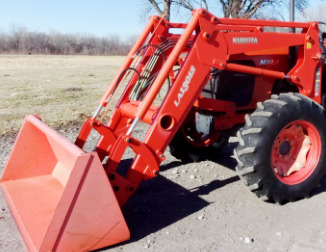

Kubota LA1301S Front End Loader

The Kubota LA1301S NSL loader fits Kubota M108X, M105X, M95X tractors. The loader has double acting bucket and lift hydraulic cylinders. The Kubota LA1301S front-end loader has a max lift height of 143.4" (3640 mm) at pin and bucket dump clearance of 111" (2810 mm).

The lift capacity is 3085 lbs (1399 kg) to max height at pin, and boom breakout force is 4980 lbs (2258 kg). The rated cycle times are 4.3 seconds raising to maximum height, and 2.2 seconds maximum bucket dumping. The Kubota LA1301S loader is equipped with a 84" (2130 mm) standard material bucket with a rated capacity of 0.60 m3 (21.1 cu.ft).

Compatible Tractors
Tractor Models Kubota M108X, M105X, M95X
Front Tires 13.6R24
Rear Tires 18.4R34
Hydraulic System Flow, gpm (lpm) 18.1 (68.5)

Loader
Loader Model Kubota LA1301S
Leveling System Non self leveling
Net Weight (approximate), lb (kg) 1470 (670)

Standard Material Bucket
Width, in (mm) 84 (2130)
Struck Capacity, cu.ft (m3) 16.8 (0.48)
Heaped Capacity, cu.ft (m3) 21.1 (0.60)
Weight, lb (kg) 440 (200)

Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 143.4 (3640)
Clearance with Bucket Dumped, in (mm) 111 (2810)
Reach at Maximum Lift Height, in (mm) 33.1 (840)
Maximum Dump Angle, degrees 55
Reach with Bucket on Ground, in (mm) 94.5 (2400)
Maximum Rollback Angle, degrees 40

Operating Data
Lift Capacity to Max Height at Pivot Point, lbs (kg) 3085 (1399)
Lift Capacity to Max Height at 31.5" (0.8m) from Bucket Pivot Point, lbs (kg) 2600 (1179)
Lift Capacity to 59" (1.5m) Height at Pivot Point, lbs (kg) 4055 (1839)
Lift Capacity to 59" (1.5m) Height at 31.5" (0.8m) from Bucket Pivot Point, lbs (kg) 3890 (1764)
Max Breakout Force at Bucket Pivot Point, lbs (kg) 4980 (2258)
Max Breakout Force at 31.5" (0.8m) from Bucket Pivot Point, lbs (kg) 4385 (1989)

Cycle Times
Loader raise, sec. 4,3
Loader lower, sec. 3,1
Bucket dump, sec. 2,2
Bucket rollback, sec. 2,8
