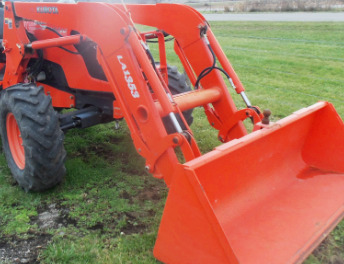

Kubota LA1353 Front End Loader

The Kubota LA1353 front end loader is available for Kubota M8560, M9960 tractors. The loader has double acting bucket and lifting hydraulic cylinders.

The Kubota LA1353 loader’s maximum lift height (at pin) is 145.7" (3700 mm) using a height position or 131.9" (3350 mm) using a power position, and clearance with bucket dumped is 110.6" (2808 mm) using a height position or 94.7" (2405 mm) using a power position.

The lifting capacity (height position/power position) is 3790 lb (1810 kg) / 4144 lb (1880 kg) to max height at pin. The rated cycle times are 4.6 seconds lifting to full height, and 2.2 seconds maximum bucket dumping.

Compatible buckets for the Kubota LA1353: 72" (1815 mm) and 84" (2125 mm) standard material buckets with heaped capacities of 19.4 cu.ft (0.55 m3) and 22.6 cu.ft (0.64 m3), or 84" (2125 mm) high volume bucket with a rated capacity of 27.9 cu.ft (0.80 m3).

Compatible Tractors
Tractor models Kubota M8560, M9960
Front tires 12.4-24 R1
Rear tires 18.4-30 R1
Rated flow, lpm (gpm) 64.3 (17.0)

72" Standard Material Bucket
Width, in (mm) 72 (1815)
Capacity (Struck), cu.ft (m3) 15.5 (0.44)
Capacity (Heaped), cu.ft (m3) 19.43 (0.55)
Weight, lbs (kg) 400 (181)

84" Standard Material Bucket
Width, in (mm) 84 (2125)
Capacity (Struck), cu.ft (m3) 18.4 (0.52)
Capacity (Heaped), cu.ft (m3) 22.60 (0.64)
Weight, lbs (kg) 530 (240)

84" High Capacity Bucket
Width, in (mm) 84 (2125)
Capacity (Struck), cu.ft (m3) 22.3 (0.64)
Capacity (Heaped), cu.ft (m3) 27.9 (0.80)
Weight, lbs (kg) 620 (282)


Loader Dimensions
Maximum Lift Height at Pivot Pin (Height position), in (mm) 145.7 (3700)
Maximum Lift Height at Pivot Pin (Power position), in (mm) 131.9 (3350)
Clearance with Bucket Dumped (Height position), in (mm) 110.6 (2808)
Clearance with Bucket Dumped (Power position), in (mm) 94.7 (2405)
Reach At Maximum Height (Height position), in (mm) 29.1 (738)
Reach At Maximum Height (Power position), in (mm) 45.2 (1149)
Maximum Dump Angle (Height position), degrees 52
Maximum Dump Angle (Power position), degrees 64
Reach with Bucket on Ground, in (mm) 87.9 (2233)
Maximum Rollback Angle, degrees 40
Digging Depth (Height position), in (mm) 7.8 (198)
Digging Depth (Power position), in (mm) 7.3 (185)
Overall Height in Carry Position, in (mm) 66.7 (1695)

Operating Data
Lift Capacity at Pivot Pin (Height position), lbs (kg) 3790 (1810)
Lift Capacity at Pivot Pin (Power position), lbs (kg) 4144 (1880)
Lift Capacity at Bucket Center (Height position), lbs (kg) 2866 (1300)
Lift Capacity at Bucket Center (Power position), lbs (kg) 2977 (1350)

Cycle Times
Raising Time to Full Height w/out Load, second 4,6
Lowering time w/out Load (powerdown), second 3,1
Attachment Rollback Time, second 2,6
Attachment Dumping Time, second 2,2
