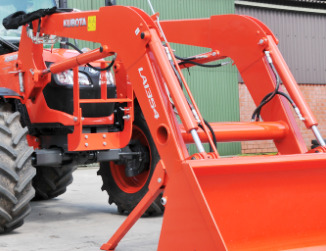

Kubota LA1354 Front End Loader

The Kubota LA1354 mechanical self leveling loader is used for Kubota M8560, M9960 tractors. The loader hydraulic system includes double-acting bucket and lift hydraulic cylinders. The Kubota LA1354 front end loader has a lifting capacity (height position) of 3790 lbs (1810 kg) to a maximum height of 145.6" (3700 mm), or lifting capacity (power position) of 4144 lbs (1880 kg) to a maximum height of 131.9" (3350 mm).

The bucket dump clearance is 110.6" (2808 mm) at maximum dump angle of 52 degrees. The rated cycle times are 4.2 seconds lifting to maximum height, and 2.4 seconds to full bucket dump. Compatible buckets for the Kubota LA1354 loader: a 72" (1830 mm) bucket with a rated capacity of 0.55 m3 (19.3 cu.ft), and 84" (2130 mm) bucket with a rated capacity of 0.64 m3 (22.4 cu.ft).

Compatible Tractors
Tractor Model Kubota M8560, M9960
Front Tire Size 12.4x24
Rear Tire Size 18.4x30
Pump Flow, gpm (lpm) 17.0 (64.5)
Hydraulic Pressure, bar (psi) 196 (2845)

Loader
Loader Model Kubota LA1354
Leveling System Mechanical self leveling
Weight, lbs (kg) 1850 (840)

72" Standard Material Bucket
Width, in (mm) 72 (1830)
Struck Capacity, cu.ft (m3) 15.4 (0.44)
Heaped Capacity, cu.ft (m3) 19.3 (0.55)
Weight, lbs (kg) 400 (182)

84" Standard Material Bucket
Width, in (mm) 84 (2130)
Struck Capacity, cu.ft (m3) 18.2 (0.52)
Heaped Capacity, cu.ft (m3) 22.4 (0.64)
Weight, lbs (kg) 518 (235)

Loader Dimensions
Maximum Lift Height at Pin (Height Position), in (mm) 145.6 (3700)
Maximum Lift Height at Pin (Power Position), in (mm) 131.9 (3350)
Clearance with Bucket Dumped (Height Position), in (mm) 110.6 (2808)
Clearance with Bucket Dumped (Power Position), in (mm) 94.7 (2405)
Reach at Maximum Height (Height Position), in (mm) 29.1 (738)
Reach at Maximum Height (Power Position), in (mm) 45.3 (1150)
Maximum Dump Angle (Height Position), deg 52
Maximum Dump Angle (Power Position), deg 64
Reach with Bucket on Ground, in (mm) 87.9 (2233)
Bucket Rollback Angle, deg 40
Digging Depth (Height Position), in (mm) 7.8 (198)
Digging Depth (Power Position), in (mm) 7.3 (185)
Overall Height in Carry Position, in (mm) 66.7 (1695)

Operating Data
Lift Capacity to Full Height at Pin (Height Position), lbs (kg) 3790 (1810)
Lift Capacity to Full Height at Pin (Power Position), lbs (kg) 4144 (1880)
Lift Capacity to Full Height at 31.5" (0.8m) ahead of Pin (Height Position), lbs (kg) 2865 (1300)
Lift Capacity to Full Height at 31.5" (0.8m) ahead of Pin (Power Position), lbs (kg) 2980 (1350)

Cycle Times
Raising Time, sec 4.2
Lowering Time, sec 2.9
Bucket Dumping Time 2.4
Bucket Rollback Time 2.2
