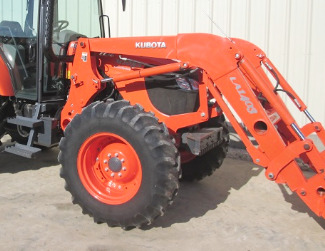

Kubota LA1403 Front End Loader

The Kubota LA1403 MSL loader is compatible with Kubota M96S, M108S tractors. The front end loader has double acting boom and bucket hydraulic cylinders. The Kubota LA1403 loader has a lift capacity (height position) of 4015 lbs (1825 kg) to a maximum height of 145.7" (3700 mm), or lift capacity (power position) of 4165 lbs (1895 kg) to a maximum height of 132.7" (3370 mm). A full dump clearance with a 52-degree maximum dump angle is 112.6" (2860 mm).

The rated cycle times are 4.2 seconds raising to maximum height, and 2.4 seconds full bucket dumping. The Kubota LA1403 loader is equipped with the following buckets: a 72" (1830 mm) bucket with a rated capacity of 0.55 m3 (19.3 cu.ft), and 84" (2130 mm) bucket with a rated capacity of 0.64 m3 (22.4 cu.ft).

Compatible Tractors
Tractor models Kubota M96S, M108S
Front tires 10.00x16
Rear tires 18,4x34
Rated flow, lpm (gpm) 65.0 (17.2)

Loader
Loader Model Kubota LA1403
Leveling System Mechanical self leveling
Weight, lbs (kg) 1350 (615)

72" Standard Material Bucket
Width, in (mm) 72 (1830)
Struck Capacity, cu.ft (m3) 15.4 (0.44)
Heaped Capacity, cu.ft (m3) 19.3 (0.55)
Weight, lbs (kg) 400 (182)

84" Standard Material Bucket
Width, in (mm) 84 (2130)
Struck Capacity, cu.ft (m3) 18.2 (0.52)
Heaped Capacity, cu.ft (m3) 22.4 (0.64)
Weight, lbs (kg) 518 (235)

Loader Dimensions
Maximum Lift Height at Pin (Height Position), in (mm) 145.7 (3700)
Maximum Lift Height at Pin (Power Position), in (mm) 132.7 (3370)
Clearance with Bucket Dumped (Height Position), in (mm) 112.6 (2860)
Clearance with Bucket Dumped (Power Position), in (mm) 98.0 (2490)
Reach at Maximum Height (Height Position), in (mm) 23.6 (600)
Reach at Maximum Height (Power Position), in (mm) 38.6 (980)
Maximum Dump Angle (Height Position), deg 52
Maximum Dump Angle (Power Position), deg 63
Reach with Bucket on Ground, in (mm) 87.8 (2230)
Bucket Rollback Angle, deg 40
Digging Depth (Height Position), in (mm) 2.4 (60)
Digging Depth (Power Position), in (mm) 2.6 (65)
Overall Height in Carry Position, in (mm) 66.9 (1700)

Operating Data
Lift Capacity to Full Height at Pin (Height Position), lbs (kg) 4015 (1825)
Lift Capacity to Full Height at Pin (Power Position), lbs (kg) 4165 (1895)
Lift Capacity to Full Height at 31.5" (0.8m) ahead of Pin (Height Position), lbs (kg) 2976 (1350)
Lift Capacity to Full Height at 31.5" (0.8m) ahead of Pin (Power Position), lbs (kg) 3086 (1400)

Cycle Times
Raising Time to Full Height, second 4,2
Lowering Time (powerdown), second 2,9
Rollback Time, second 2,2
Dumping Time, second 2,4
